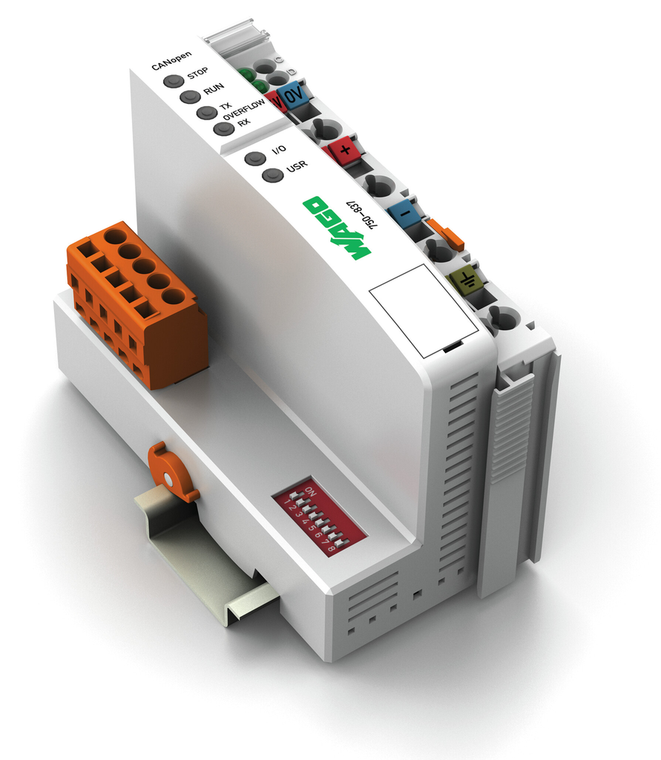

WAGO 750-837

SKU:

750-837

UPC:

MPN:

750-837

Condition:

New

baud rate:

10 kBd 1 MBd

bus segment length max:

1000 m

cob id distribution:

SDO, standard

color:

Light gray

communication:

CANopen

configuration options:

EDS device description file || WAGO-I/O-CHECK

conformity marking:

CE

connection technology communication fieldbus:

CANopen: 1 x Male connector: 5-pole

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

6 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

cpu:

16 bits

current carrying capacity power jumper contacts:

0.416666666666667

cycle time:

< 3 ms for 1000 bit instructions/ 256 digital I/O

data memory:

64 kByte

depth:

71.1 mm / 2.799 inch

depth from upper edge of din rail:

63.9 mm / 2.516 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

3.045 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (STOP) red: Device/node Stop: LED (RUN) green: Initialization: LED (TX, RX OVERFLOW) red: CAN send/receive buffer overflow: LED (I/O, USR) red/green/orange: Local status, status programmable by user: LED (A, B) green: System power supply status,

input and output fieldbus process image max:

512 Byte/512 Byte

input current typ at nominal load 24 v:

500 mA

isolation:

500 V system/field

memory for fieldbus input variables max:

512 Byte

memory for fieldbus output variables max:

512 Byte

mounting position:

Any

mounting type:

DIN-35 rail

node id distribution:

DIP switch

non volatile software memory:

8 kB

note:

Note: Configuration files required (EDS)!The EDS files can be downloaded for free at www.wago.com.

number of fieldbus nodes on master max:

110

number of modules per node max:

64

number of outgoing power jumper contacts:

3

number of pdos:

32 Tx / 32 Rx

number of sdos:

2 SDO servers / 16 SDO clients

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

other canopen features:

NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding/heartbeat || Empty module configuration

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

350 mA

power supply efficiency typ at nominal load 24 v:

0.87

program memory:

128 kByte

programming environment:

WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

programming languages per iec 61131 3:

Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts

supply voltage system:

24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)

supported profiles:

Communication profile: DS-301 V4.01: device profile: DS-401 V2.0: limit monitoring, flank-triggered PDOs, configurable response in the event of an error, DSP 405, NMT master programmable using function blocks

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-25 85 C

total current system supply:

1650 mA

transmission medium communication fieldbus:

Shielded Cu cable 3 x 0.25 mm

vibration resistance:

4g per IEC 60068-2-6

visualization:

Without

weight:

183.000 g

width:

50.5 mm / 1.988 inch
