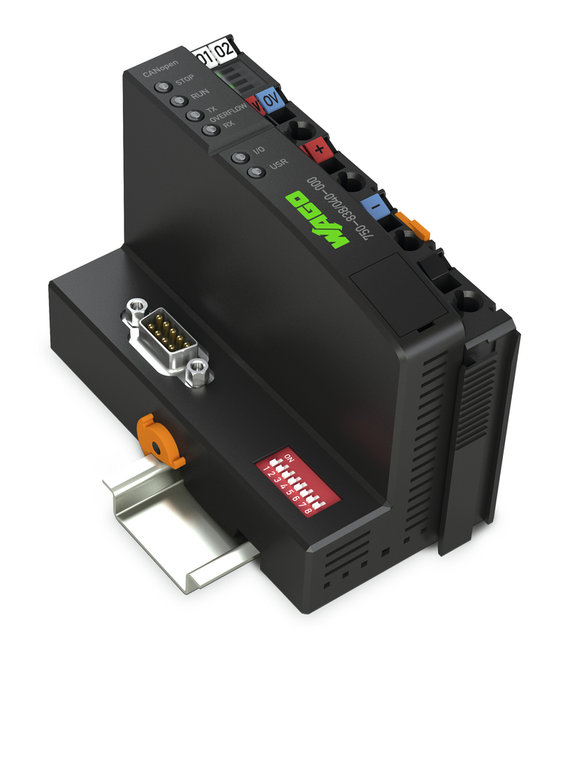

Wago 750-838/040-000

Wago 750-838/040-000 Power Supply; 24 VDC; Extreme; dark gray

Wago
SKU:
750-838/040-000
$1,203.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Controller CANopen; 640/832 KB Program/RAM; D-Sub; Extreme
Additional Information
baud rate:
10 kBd 1 MBd
bus segment length max:
1000 m
cob id distribution:
SDO, standard
color:
Dark gray
communication:
CANopen
configuration options:
EDS device description file || WAGO-I/O-CHECK
conformity marking:
CE
connection technology communication fieldbus:
CANopen: 1 x D-sub 9 plug
connection technology device configuration:
1 x Male connector: 4-pole
connection technology field supply:
4 x CAGE CLAMP
connection technology system supply:
2 x CAGE CLAMP
connection type 1:
System/field supply
country of origin sales organisation germany:
DE
cpu:
32 bits
current carrying capacity power jumper contacts:
0.416666666666667
cycle time:
< 3 ms for 1000 bit instructions/256 digital I/O
data memory:
832 kByte
depth:
71.1 mm / 2.799 inch
depth from upper edge of din rail:
63.9 mm / 2.516 inch
derating:
Total current for system supply: 1650 mA (surrounding air (operating) temperature < 60 C: 1250 mA (surrounding air (operating) temperature: 60 70 C): Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25
emc emission of interference:
Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
emc immunity to interference:
Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 50121-3-2, -4, -5, EN 60255-26
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.25 2.5 mm / 24 14 AWG
fire load:
0.469 MJ
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
indicators:
LED (STOP) red: Device/node Stop: LED (RUN) green: Initialization: LED (TX, RX OVERFLOW) red: CAN send/receive buffer overflow: LED (I/O, USR) red/green/orange: Local status, status programmable by user: LED (A, B) green: System power supply status,
input and output fieldbus process image max:
512 Byte/512 Byte
input current typ at nominal load 24 v:
500 mA
memory for fieldbus input variables max:
512 Byte
memory for fieldbus output variables max:
512 Byte
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
node id distribution:
DIP switch
non volatile software memory:
8 kB
note:
Note: Configuration files required (EDS)!The EDS files can be downloaded for free at www.wago.com.
number of fieldbus nodes on master max:
110
number of modules per node max:
64
number of outgoing power jumper contacts:
2
number of pdos:
32 Tx / 32 Rx
number of sdos:
2 SDO servers / 16 SDO clients
operating altitude:
Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
other canopen features:
NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding/heartbeat || Empty module configuration
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per IEC 61131-2
power consumption 5 v system supply:
350 mA
power supply efficiency typ at nominal load 24 v:
0.9
program memory:
640 kByte
programming environment:
WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
programming languages per iec 61131 3:
Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
protection type:
IP20
rated surge voltage:
1 kV
ratings per:
IEC/EN 60664-1
relative humidity with condensation:
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
relative humidity without condensation:
0.95
shock resistance:
Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
solid conductor:
0.25 2.5 mm / 24 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC: Power supply via pluggable connector (CAGE CLAMP connection): Transmission via power jumper contacts: Derating must be observed!
supply voltage system:
24 VDC: via pluggable connector (CAGE CLAMP connection): Derating must be observed!
supported profiles:
Communication profile: DS-301 V4.01: device profile: DS-401 V2.0: limit monitoring, flank-triggered PDOs, configurable response in the event of an error, DSP 405, NMT master programmable using function blocks
surrounding air temperature operation:
-40 70 C
surrounding air temperature storage:
-40 85 C
total current system supply:
1650 mA
transmission medium communication fieldbus:
Shielded Cu cable 3 x 0.25 mm
vibration resistance:
Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
visualization:
Without
weight:
182.000 g
width:
50.5 mm / 1.988 inch
