Wago

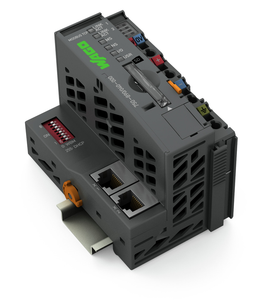

WAGO 750-890

SKU:

750-890

UPC:

MPN:

750-890

Condition:

New

baud rate:

10/100 Mbit/s

baud rate communication fieldbus 1:

10/100 Mbit/s

color:

Light gray

communication:

Modbus (TCP, UDP)

configuration options:

WAGO-I/O-CHECK || Web-Based Management || CODESYS Library

conformity marking:

CE

connection technology communication fieldbus:

Modbus TCP/UDP: 2 x RJ-45

connection technology device configuration:

1 x Male connector: 4-pole

connection technology field supply:

6 x CAGE CLAMP

connection technology system supply:

2 x CAGE CLAMP

connection type 1:

System/field supply

country of origin sales organisation germany:

DE

cpu:

32 bits

current carrying capacity power jumper contacts:

0.416666666666667

data memory:

8 MB

depth:

71.9 mm / 2.831 inch

depth from upper edge of din rail:

64.7 mm / 2.547 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

ethernet protocols:

HTTP(S) || BootP || DHCP || DNS || SNTP || FTP(S) || SNMP

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

2.240 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (LINK/ACT) green: Network connection via ports 1 2: LED (MS, NS) red/green: Status of node, network: LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user: LED (A, B) green: System power supply status, field su

input and output fieldbus process image max:

1020 Worte/1020 Worte

input current typ at nominal load 24 v:

500 mA

isolation:

500 V system/field

memory card slot:

Push-push mechanism: Cover lid (sealable)

memory card type:

SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)

mounting position:

Any

mounting type:

DIN-35 rail

non volatile software memory:

32 kB

number of modules per node max:

250

number of modules without a bus extension max:

64

number of outgoing power jumper contacts:

3

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

440 mA

power supply efficiency typ at nominal load 24 v:

0.9

program memory:

8 MB

programming environment:

WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)

programming languages per iec 61131 3:

Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts

supply voltage system:

24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-25 85 C

total current system supply:

1700 mA

transmission medium communication fieldbus:

Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length

transmission performance:

Class D per EN 50173

vibration resistance:

4g per IEC 60068-2-6

visualization:

Web Visu

weight:

151.600 g

width:

61.5 mm / 2.421 inch
