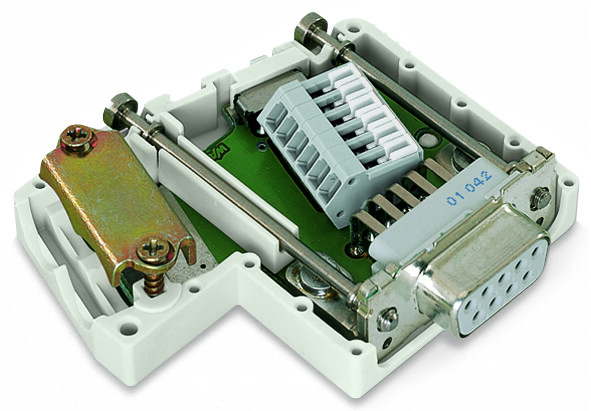

WAGO 750-963 Fieldbus Connector CANopen with D-Sub Female Connector
Wago
$59.92
Fieldbus Connector CANopen; with D-sub female connector; 9-pole.
The WAGO component equivalent to 750963 is a versatile and reliable automation module designed for various industrial applications. It offers seamless integration with existing systems, ensuring efficient communication and control. This component is known for its robust performance, ease of installation, and compatibility with a wide range of devices, making it an ideal choice for enhancing automation processes.
- baud rate:
- 10 kBd 1 MBd (per CANopen specification)
- cable glands number:
- 2
- color:
- Light gray
- communication fieldbus:
- CANopen
- connectable sheathed cable diameter:
- 4.5 9.5 mm
- connection type:
- D-sub 9 socket
- connection type 1:
- CAGE CLAMP terminal strip with locking slide (218 Series)
- country of origin sales organisation germany:
- DE
- depth:
- 54 mm / 2.126 inch
- fire load:
- 0.950 MJ
- height:
- 16 mm / 0.63 inch
- housing material:
- PA66-105-V2
- packaging type:
- Bag
- pole no:
- 9
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- 0 60 C
- surrounding air temperature storage:
- -25 85 C
- vibration resistance:
- 4g per IEC 60068-2-6
- weight:
- 27.600 g
- width:
- 45 mm / 1.772 inch
