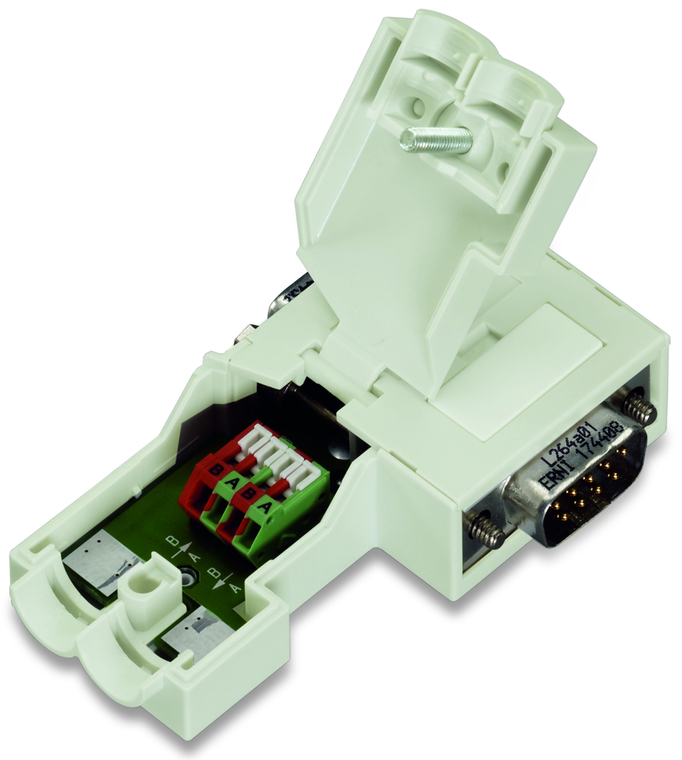

Fieldbus Connector PROFIBUS; with D-sub female and male connector; 9-pole
- Compact design. It is particularly well-suited for the connection to an S7 PLC.
- No losable parts.
- PG interface
- 2 horizontal cable entries. One input and one output.
- Fast and maintenance-free CAGE CLAMP<sup></sup> connection, can be held in the open position with the help of an actuation slide mechanism.
- Externally operable switch to activate and/or deactivate the network terminating resistor.
The WAGO component equivalent to 750972 is a versatile and reliable automation module designed for various industrial applications. It offers seamless integration with existing systems, ensuring efficient communication and control. This component is known for its robust performance, ease of installation, and compatibility with a wide range of devices, making it an ideal choice for enhancing automation processes.
- baud rate:
- 12 Mbit/s (per PROFIBUS specification)
- cable glands number:
- 2
- color:
- Light gray
- communication fieldbus:
- PROFIBUS
- connectable sheathed cable diameter:
- 8.5 mm
- connection type:
- D-sub 9 plug
- connection type 1:
- CAGE CLAMP terminal strip with locking slide (218 Series)
- country of origin sales organisation germany:
- DE
- depth:
- 72.8 mm / 2.866 inch
- fire load:
- 0.000 MJ
- height:
- 16.2 mm / 0.638 inch
- housing material:
- PC-V0
- input current:
- 5 mA
- packaging type:
- Box
- pole no:
- 9
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- supply voltage:
- 4.75 5.25 VDC
- surrounding air temperature operation:
- 0 60 C
- surrounding air temperature storage:
- -25 85 C
- weight:
- 30.000 g
- width:
- 44.2 mm / 1.741 inch
