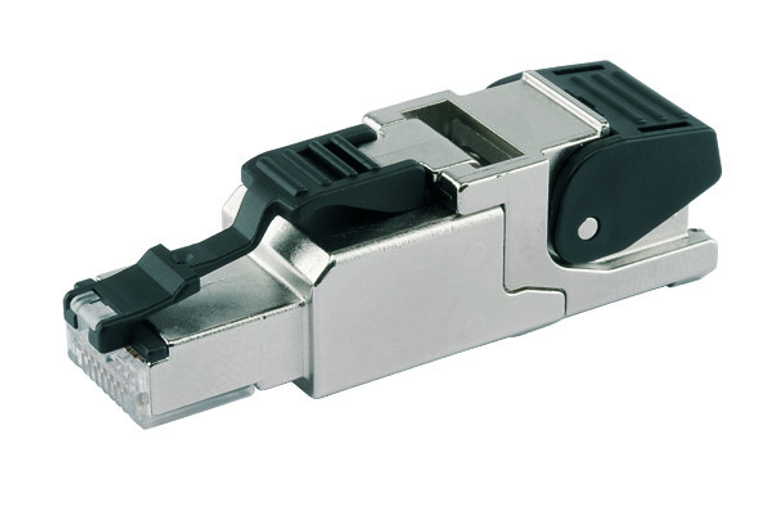

WAGO 750-977/000-022 Ethernet Connector RJ-45 Cat. 6A
Wago
$27.05
Connector ETHERNET; RJ-45; Cat. 6A; straight; Code T568B; AWG 24.
The Ethernet Cat.6a connector from WAGO's 750 series is an 8-pole (8P) connector designed for cables with a cross-sectional area of 0.13mm² to 0.21mm² or #26AWG to #24AWG. It features an RJ45 connector and IDC (Insulation Displacement Contact) suitable for 0.11-0.23mm² cables. The connector is IP20 rated, has a straight shape, and meets Cat.6a specifications, equivalent to model number 750977000022.
- cable connection direction to mating direction:
- 0
- code:
- TIA-568B
- communication fieldbus:
- Ethernet
- connectable sheathed cable diameter:
- 5.5 9 mm
- connection requirement permissible cable type:
- Cat. 6A
- connection type:
- RJ-45 plug
- connection type 1:
- IDC contact
- country of origin sales organisation germany:
- TW
- depth:
- 49 mm
- fire load:
- 0.000 MJ
- height:
- 16.2 mm
- housing material:
- Zinc die casting
- packaging type:
- Bag
- pole no:
- 8
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- solid conductor:
- 0.13 0.21 mm / 26/1 24/1 AWG
- standards specifications:
- IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an || EIA/TIA 568-C.2 || DIN EN 50173-1 || UL 1863 || UL 2043
- stranded conductor 2:
- 0.11 0.23 mm / 27/7 24/7 AWG
- surrounding air temperature operation:
- -40 85 C
- surrounding air temperature storage:
- -40 85 C
- weight:
- 18.000 g
- width:
- 13.8 mm
