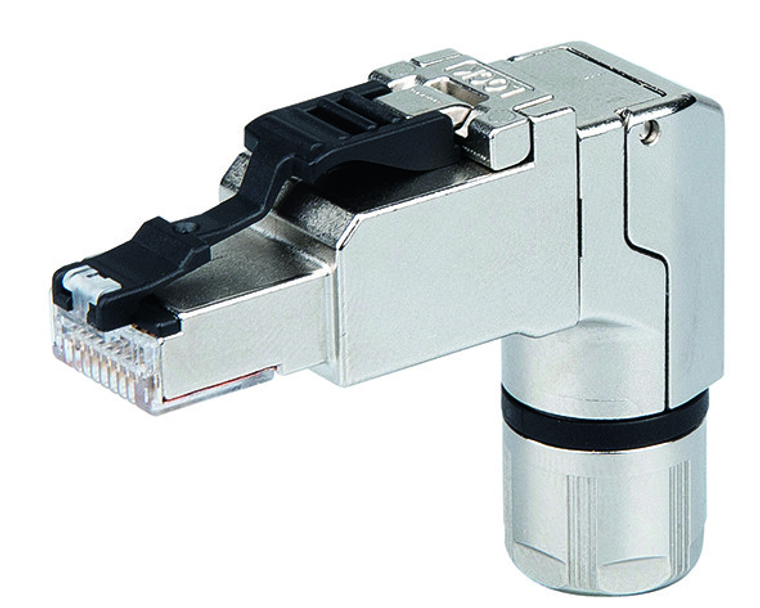

WAGO 750-979/000-021 Ethernet Connector, RJ-45, Cat. 6A, Angled, T568A, AWG 24, with Strain Relief
Wago
$33.44
Connector ETHERNET; RJ-45; Cat. 6A; angled; Code T568A; AWG 24; Strain relief.
The WAGO component equivalent to 750979000021 is a specific part used in industrial automation and control systems. It is designed to facilitate efficient and reliable connectivity and communication within various automation applications. This component is known for its high performance, durability, and compatibility with other WAGO products, making it a crucial element in ensuring seamless operation and integration in complex industrial environments.
- cable connection direction note:
- Selectable position
- cable connection direction to mating direction:
- 90
- code:
- TIA-568A
- communication fieldbus:
- Ethernet
- connectable sheathed cable diameter:
- 5.5 10 mm
- connection requirement permissible cable type:
- Cat. 6A
- connection type:
- RJ-45 plug
- connection type 1:
- IDC contact
- country of origin sales organisation germany:
- TW
- depth:
- 45.7 mm
- fire load:
- 0.000 MJ
- height:
- 41 mm
- housing material:
- Zinc die casting
- packaging type:
- Bag
- pole no:
- 8
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- solid conductor:
- 0.13 0.21 mm / 26/1 24/1 AWG
- standards specifications:
- IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an || EIA/TIA 568-C.2 || DIN EN 50173-1 || UL 1863 || UL 2043
- stranded conductor 2:
- 0.11 0.23 mm / 27/7 24/7 AWG
- surrounding air temperature operation:
- -40 85 C
- surrounding air temperature storage:
- -40 85 C
- weight:
- 26.000 g
- width:
- 13.9 mm
