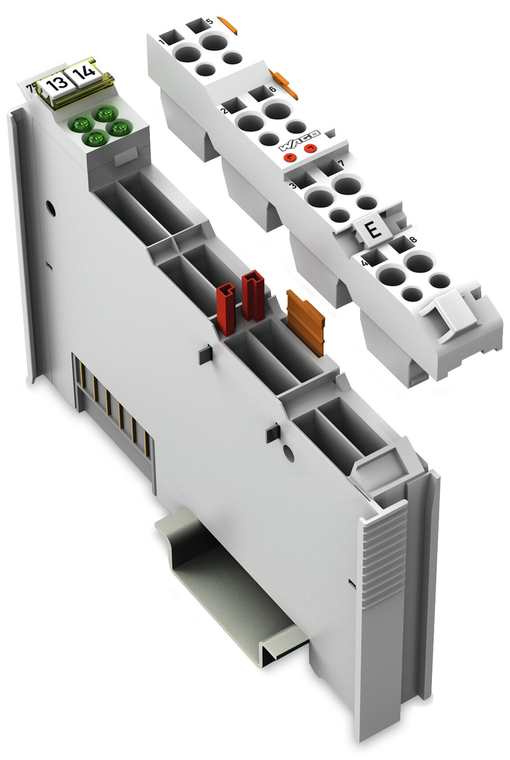

WAGO 753-402 4-Channel Digital Input Module
Wago
$79.81
4-channel digital input; 24 VDC; 3 ms.
The WAGO 753 series Pluggable DC digital input slice module features 4 digital inputs (24Vdc transistor, high-side switching, 2-wire/3-wire, 3ms filter) and operates with a supply voltage of 5Vdc provided by the system. It includes spring CAGE CLAMP connections, is designed for DIN-35 rail mounting with a 12mm width, and has an IP20 protection rating. The module is suitable for ambient temperatures ranging from 0°C to +55°C and is equivalent to the 753402 model.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.174 MJ
- flammability class per ul94:
- V0
- height:
- 73.5 mm / 2.894 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 10.700 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
