Wago

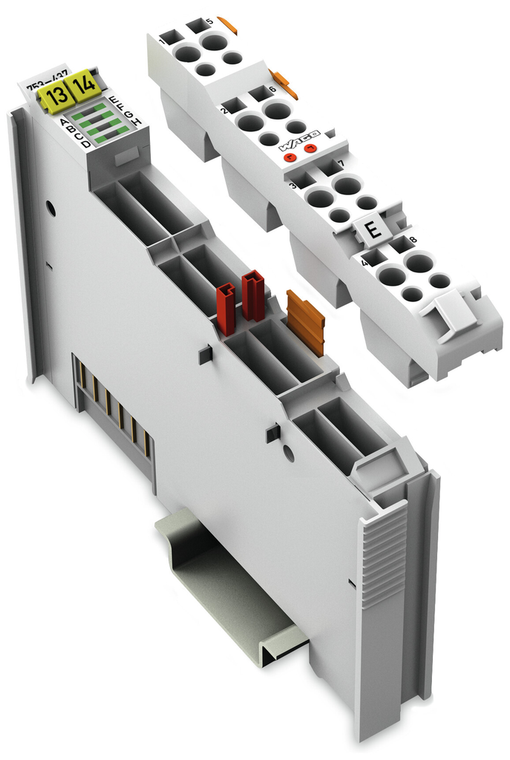

WAGO 753-437

SKU:

753-437

UPC:

MPN:

753-437

Condition:

New

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69 mm / 2.717 inch

depth from upper edge of din rail:

61.8 mm / 2.433 inch

emc emission of interference:

Per EN 61000-6-3, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.204 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7: LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8

input characteristic:

Low-side switching

input data width internal max:

8 bits

input filter digital:

0.2 ms

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Pluggable connectors and coding fingers (753 Series) are not included.

number of digital inputs:

8

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

13 mA

protection type:

IP20

relative humidity without condensation:

0.95

sensor connection:

8 x (1-wire)

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total number of channels module:

8

vibration resistance:

4g per IEC 60068-2-6

voltage range for signal 0:

15 30 VDC

voltage range for signal 1:

3 +5 VDC

voltage signal type:

24 VDC

weight:

38.500 g

width:

12 mm / 0.472 inch

wiring interface:

Pluggable
