Wago

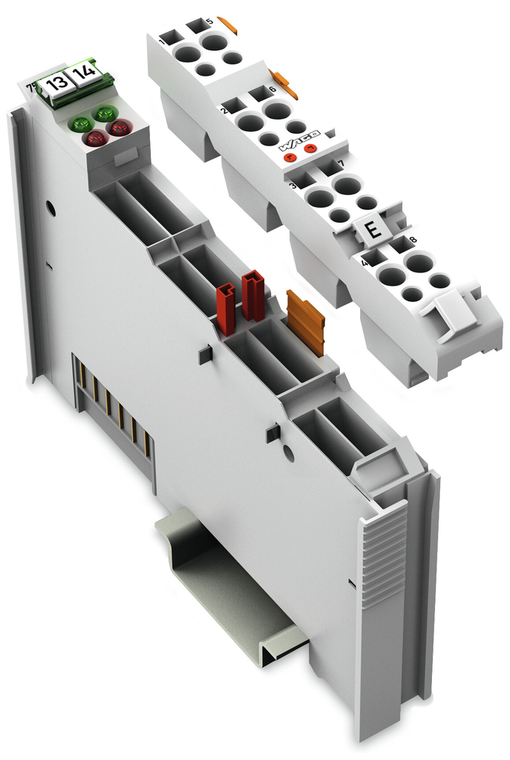

WAGO 753-477

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 753-477

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

753-477

UPC:

MPN:

753-477

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

conversion time typ:

200 ms

country of origin sales organisation germany:

DE

data width:

2 x 16-bit data: 2 x 8-bit control/status (optional)

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.052 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

internal resistance:

120 k

isolation:

500 V system/field or channel/channel

measurement error deviation max from the upper range value:

0.001

measurement error over entire temperature range:

¤ 0.6 %

measurement error reference temperature:

25 C

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Pluggable connectors and coding fingers (753 Series) are not included.

number of analog inputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

80 mA

process data:

0.0 V corresponds to 0x0000: 20 VDC corresponds to 0x4E20

protection type:

IP20

relative humidity without condensation:

0.95

resolution bit:

15 bits

sensor connection:

2 x (2-wire)

shock resistance:

15g per IEC 60068-2-27

signal characteristic:

Differential

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

< 110 ppm/K of greatest measurement range

total number of channels module:

2

vibration resistance:

Per IEC 60068-2-6

voltage signal type:

0 10 VAC/DC

weight:

41.068 g

width:

12 mm / 0.472 inch

wiring interface:

Pluggable
