LONFTT Interface
Technical Data
- Device-specific: Number of network variables: max. 254 (249 for application)
- Topology: acc. to LON specification
- Number of aliases: 127
- Fieldbus segment length max.: 2700 m; 500 m (free topology) 2700 m (bus-topology)
- Transmission medium: Twisted pair - FTT
- Transmission channel: 1
- Bit width: 24-byte data
- Commissioning: via WAGO-I/O-CHECK
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 30 mA
- Field supply voltage: DC 24 V; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation: 500 V system/supply
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
Connection Data
- Connection technology: In-/Outputs: 8 x CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 69 mm / 2.717 inch
- Height from upper-edge of DIN-35 rail: 61.8 mm / 2.433 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
- Pluggable connector: yes
Material Data
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 0.000 MJ
- Weight: 54.832 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: acc. to IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2
- EMC emission of interference: acc. to EN 61000-6-3
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821475705
- Customs Tariff No.: 85389099990

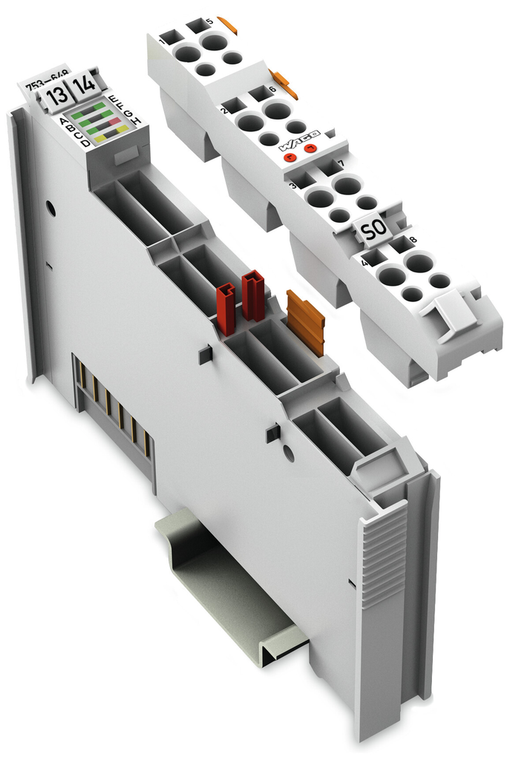

The LON-FTT communications interface slice module from WAGO's 753 series features a plug-in connector and LONworks communication capability, supporting 249 network variables and 127 aliases. It operates on a 5Vdc supply voltage provided by the system and includes 8 CAGE CLAMP spring connections. Designed for DIN-35 rail mounting with a 12mm width, it is rated for ambient temperatures between 0°C and +55°C and complies with ISO14908 standards, equivalent to model 753648. The module has an IP20 protection rating.
- baud rate:
- 0.078 Mbit/s
- bus segment length max:
- 500 m (free topology): 2700 m (bus topology)
- commissioning:
- Via WAGO-I/O-CHECK or WAGO-I/O-PRO V2.3
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- country of origin sales organisation germany:
- DE
- data width:
- 24-byte data
- depth:
- 69 mm / 2.717 inch
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- device specific:
- Number of network variables: max. 254 (249 for application)
- emc emission of interference:
- Per EN 61000-6-3
- emc immunity to interference:
- Per EN 61000-6-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.962 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- isolation:
- 500 V system/field
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of aliases max:
- 127
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 30 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- supply voltage field:
- 24 VDC: via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- topology:
- Per LON specification
- transceiver:
- FTX2
- transmission channel:
- 1
- transmission medium:
- Twisted pair - FTT
- vibration resistance:
- Per IEC 60068-2-6
- weight:
- 54.832 g
- width:
- 12 mm / 0.472 inch
- wiring interface:
- Pluggable
