Wago

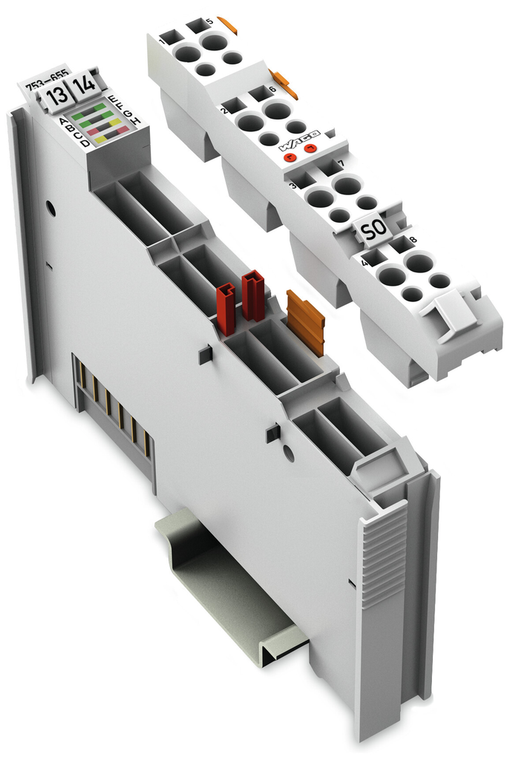

WAGO 753-655

SKU:

753-655

UPC:

MPN:

753-655

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

cycle time as i:

0.3 10 ms, depending on the number of slaves

data width:

12 48 bytes (max.), configurable, including 1 byte control/status

depth:

69 mm / 2.717 inch

depth from upper edge of din rail:

61.8 mm / 2.433 inch

device specific:

AS-I cable length (max.): 100 m, with repeater 300 m

device specification:

AS-i master class: M4: AS-I Specification: 3.0

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.754 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

500 V system/supply/AS-I

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Pluggable connectors and coding fingers (753 Series) are not included.

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

55 mA

power consumption typ:

40 mA (AS-I)

power supply:

AS-I: 26.5 31.6 V

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage field:

24 VDC (-15 +20 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

topology:

Number of slaves: up to 62: Slave profiles: V3.0 with transaction types 1 5

transmission channel:

1

vibration resistance:

4g per IEC 60068-2-6

weight:

46.000 g

width:

12 mm / 0.472 inch

wiring interface:

Pluggable
