Wago

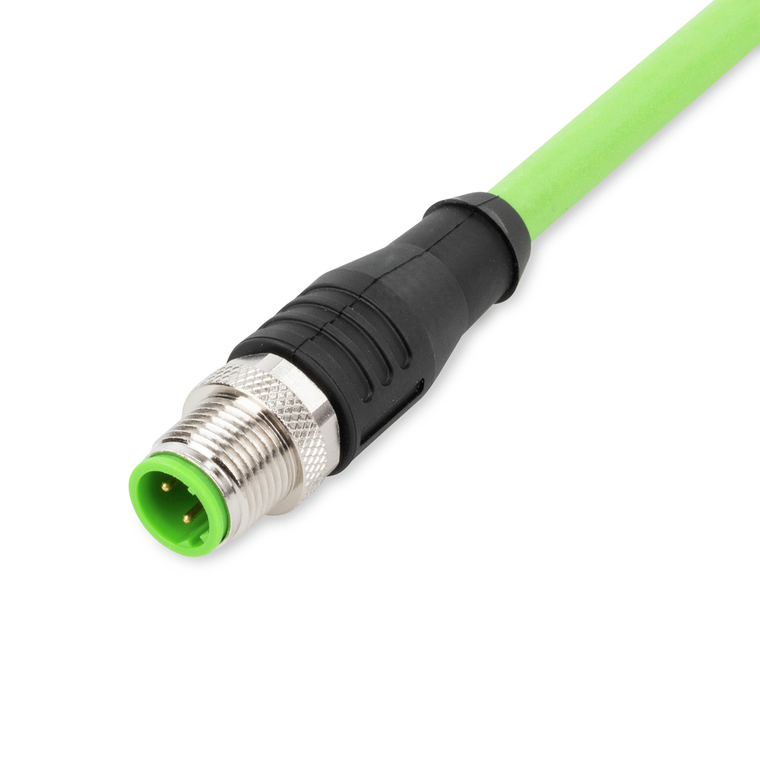

WAGO 756-1201/060-050

SKU:

756-1201/060-050

UPC:

MPN:

756-1201/060-050

Condition:

New

bending cycles:

3 Mio.

bending radius:

Single: 5 x cable diameter (min.): Multiple: 7.5 x cable diameter (min.)

cable connection direction to mating direction:

0

cable length:

5 m

color:

Green

communication fieldbus:

Ethernet

communication fieldbus:

PROFINET

conductor design:

Bare copper wire (7 x 0.25 mm)

conductor insulation:

PE (halogen-free)

conductor resistance:

< 57 /km

connection type:

M12 plug - Free end

connector interface coding cable adapter 1 1:

D-coded

contact resistance:

10 m

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

5 x 108 /km

operating current:

0.166666666666667

operating voltage:

250 V

packaging type:

Box

pole no:

4

pollution degree 5:

3/2 per IEC 60664-1

protection type:

IP67

rated surge voltage:

2 kV

sheathed cable diameter:

6.3 6.7 mm

shield:

Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 %

surrounding air operating temperature dynamic:

-40 +70 C

surrounding air operating temperature static:

-40 +70 C

tightening torque:

1 Nm

type code:

02YH(ST)C11Y 2x2x0.75/1.5-100 LI GN VZN FRNC, shielded

weight:

350.000 g
