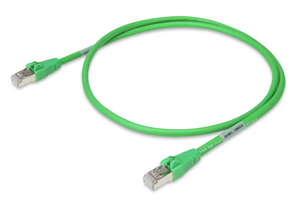

Wago

WAGO 756-1250/1023-050

SKU:

756-1250/1023-050

UPC:

MPN:

756-1250/1023-050

Condition:

New

baud rate:

10000 Mbit/s

bending cycles:

8500 Mio.

bending radius:

10 mm (min.)

cable connection direction to mating direction:

0

cable length:

5 m

color:

Green

conductor design:

Bare copper wire (7 x 0.16 mm)

conductor insulation:

PE (halogen-free)

conductor resistance:

< 142 /km

connection type:

RJ-45 plug - RJ-45 plug

contact material:

CuZn

contact plating:

CuNi/Au: 50 inch gold plating

country of origin sales organisation germany:

CN

fire load:

0.000 MJ

halogen free:

Yes

insulation resistance:

1x108 xkm

mating cycles max:

1200

operating current:

0.72 A

operating voltage:

80 V

packaging type:

Bag

rated surge voltage:

500 V (wire/wire/shield rms 50 Hz 1 min)

sheath material:

LSOH TPE, halogen-free per IEC 60754-2, flame-retardant per IEC 60332-1, low-smoke per IEC 61034

sheathed cable color:

Green

sheathed cable diameter:

6 6.4 mm

shield:

Overlapped aluminum-laminated foil and tinned copper braid (PiMF)

surrounding air operating temperature dynamic:

-40 +80 C

surrounding air operating temperature static:

-40 +80 C

weight:

189.600 g
