WAGO 756-1306/060-002
Wago

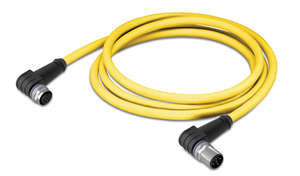

System bus cable; M12B socket; angled; M12B plug; angled; 5-pole; Length 0.2 m.
The WAGO component equivalent to 7561306060002 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with existing systems. This component is known for its durability, ease of installation, and compatibility with a wide range of devices, making it a popular choice among professionals in the field.
- bending radius:
- 5 x cable diameter (min.)
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 0.2 m
- color:
- Yellow
- conductor design:
- Bare copper wire (26/7 AWG)
- conductor insulation:
- Zell-PE: Core : 1.0 mm (max.)
- conductor resistance:
- 145 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- B-coded
- connector interface coding cable adapter 2 1:
- B-coded
- contact material:
- CuZn
- contact plating:
- CuNi/Au
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 5000 M
- material properties of the connections:
- Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)
- mating cycles max:
- 100
- operating current:
- 0.166666666666667
- operating voltage:
- 60 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6 mm
- shield:
- Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
- surrounding air temperature operation:
- -25 60 C
- tightening torque:
- 1 Nm
- type code:
- KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded
- weight:
- 51.900 g
