WAGO 756-1306/060-005
Wago

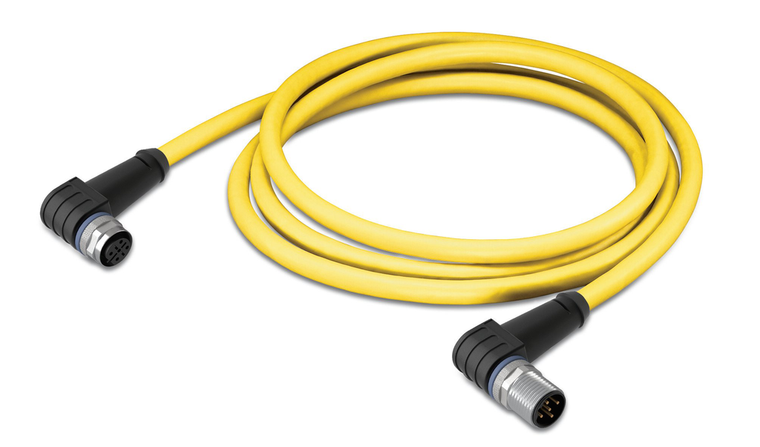

System bus cable, angled; 0.5 m; fitted on both ends; B-coded; M12 socket, angled; M12 plug, angled.
The WAGO component equivalent to 7561306060005 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- bending radius:
- 5 x cable diameter (min.)
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 0.5 m
- color:
- Yellow
- conductor design:
- Bare copper wire (26/7 AWG)
- conductor insulation:
- Zell-PE: Core : 1.0 mm (max.)
- conductor resistance:
- 145 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- B-coded
- connector interface coding cable adapter 2 1:
- B-coded
- contact material:
- CuZn
- contact plating:
- CuNi/Au
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 5000 M
- material properties of the connections:
- Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)
- mating cycles max:
- 100
- operating current:
- 0.166666666666667
- operating voltage:
- 60 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6 mm
- shield:
- Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
- surrounding air temperature operation:
- -25 60 C
- tightening torque:
- 1 Nm
- type code:
- KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded
- weight:
- 64.000 g
