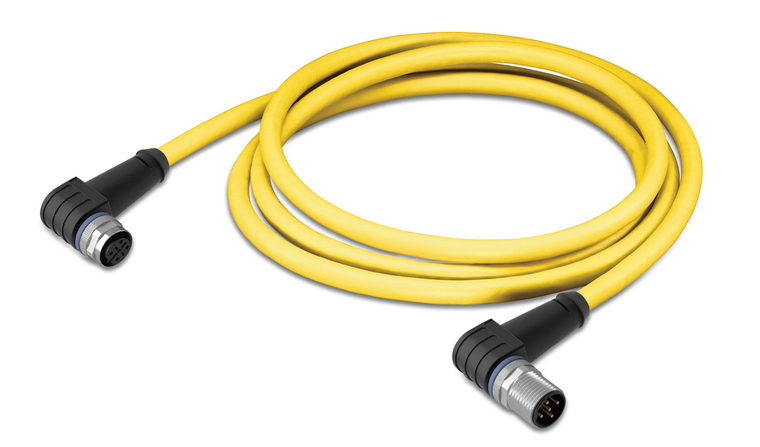

WAGO 756-1306/060-020
Wago
System bus cable; M12B socket; angled; M12B plug; angled; 5-pole; Length: 2 m.
The WAGO component equivalent to 7561306060020 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration within electrical systems. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- bending radius:
- 5 x cable diameter (min.)
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 2 m
- color:
- Yellow
- conductor design:
- Bare copper wire (26/7 AWG)
- conductor insulation:
- Zell-PE: Core : 1.0 mm (max.)
- conductor resistance:
- 145 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- B-coded
- connector interface coding cable adapter 2 1:
- B-coded
- contact material:
- CuZn
- contact plating:
- CuNi/Au
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 5000 M
- material properties of the connections:
- Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)
- mating cycles max:
- 100
- operating current:
- 0.166666666666667
- operating voltage:
- 60 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6 mm
- shield:
- Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
- surrounding air temperature operation:
- -25 60 C
- tightening torque:
- 1 Nm
- type code:
- KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded
- weight:
- 115.000 g
