Wago

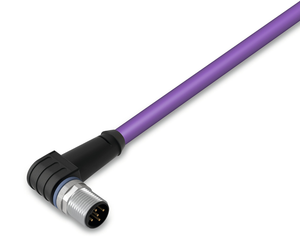

WAGO 756-1404/060-020

SKU:

756-1404/060-020

UPC:

MPN:

756-1404/060-020

Condition:

New

bending cycles:

5 Mio.

bending radius:

5 x cable diameter (min.)

cable connection direction to mating direction:

90

cable length:

2 m

color:

Violet

communication fieldbus:

CANopen

communication fieldbus:

DeviceNet

conductor design:

Bare copper wire (19 x 0.125 mm)

conductor insulation:

PE (halogen-free)

conductor resistance:

57 /km (22 AWG) + 79 /km (24 AWG)

connection type:

M12 plug - Free end

connector interface coding cable adapter 1 1:

A-coded

contact resistance:

10 m

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

2 x 108 /km

operating current:

0.166666666666667

operating voltage:

¤ 300 V

packaging type:

Box

pole no:

5

pollution degree 5:

3/2 per IEC 60664-1

protection type:

IP67

rated surge voltage:

2 kV

sheathed cable diameter:

6.6 7.2 mm

shield:

Tinned copper braid, optical coverage approx. 85 %

surrounding air operating temperature dynamic:

-40 +80 C

surrounding air operating temperature static:

-40 +80 C

tightening torque:

1 Nm

type code:

L-02YC11Y 2xAWG24 + 2xAWG22/1.4-120 VI FRNC, geschirmt

weight:

151.000 g
