Wago

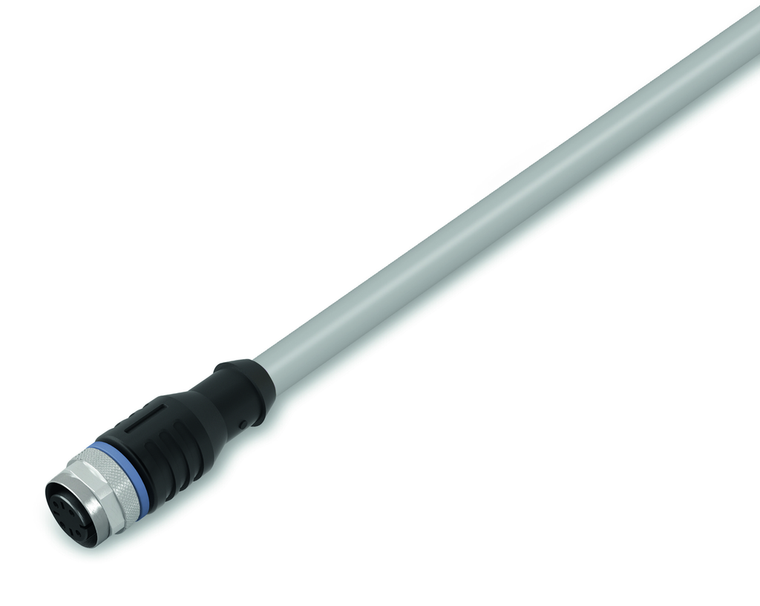

WAGO 756-3101/040-050

SKU:

756-3101/040-050

UPC:

MPN:

756-3101/040-050

Condition:

New

bending cycles:

4 Mio.

bending radius:

10 x cable diameter (min.) for flexible application

cable connection direction to mating direction:

0

cable length:

5 m

conductor design:

Bare copper wire (40 x 0.15 mm)

conductor insulation:

PP9Y (halogen-free)

conductor resistance:

26 /km

connection type:

M12 socket - Free end

connector interface coding cable adapter 1 1:

A-coded

contact resistance:

10 m

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

1000 M

operating current:

0.166666666666667

operating voltage:

250 VAC/DC

packaging type:

Box

plc manufacturer:

WAGO

pole no:

4

pollution degree 5:

3/2 per IEC 60664-1

protection type:

IP67

rated surge voltage:

2.5 kV

sheathed cable diameter:

6 6.4 mm

surrounding air operating temperature dynamic:

-30 +80 C

surrounding air operating temperature static:

-30 +80 C

tightening torque:

1 Nm

type code:

Lif9YH-11YH 4x0.75 mm2

weight:

9.999 g
