WAGO 756-3102/040-100
Wago

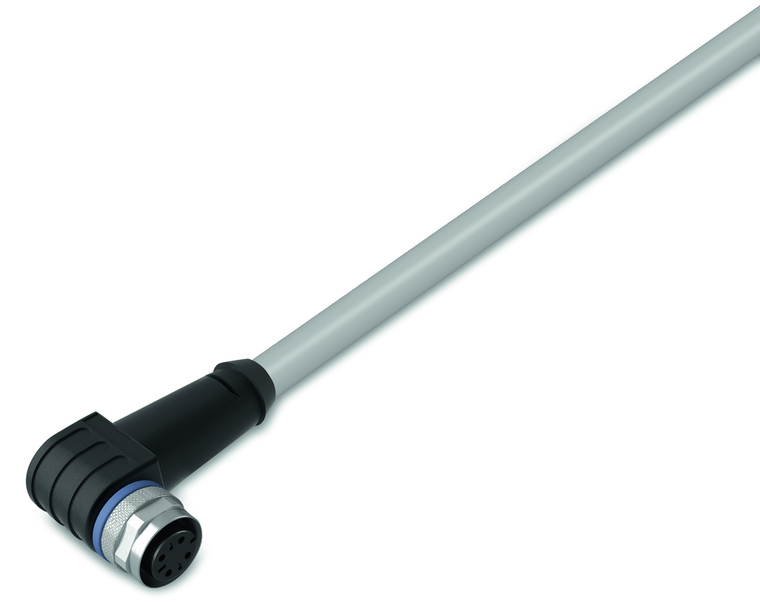

Power cable; M12A socket; angled; 4-pole; Length: 10 m.
The WAGO component equivalent to 7563102040100 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with other system components. This component is known for its high quality, durability, and compatibility with a wide range of devices and systems, making it a preferred choice for professionals in the field.
- bending cycles:
- 4 Mio.
- bending radius:
- 10 x cable diameter (min.) for flexible application
- cable connection direction to mating direction:
- 90
- cable length:
- 10 m
- conductor design:
- Bare copper wire (40 x 0.15 mm)
- conductor insulation:
- PP9Y (halogen-free)
- conductor resistance:
- 26 /km
- connection type:
- M12 socket - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 1000 M
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 4
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 2.5 kV
- sheathed cable diameter:
- 6 6.4 mm
- surrounding air operating temperature dynamic:
- -30 +80 C
- surrounding air operating temperature static:
- -30 +80 C
- tightening torque:
- 1 Nm
- type code:
- Lif9YH-11YH 4x0.75 mm2
- weight:
- 576.000 g
