Wago

WAGO 756-3105/040-030

(No reviews yet) Write a Review
SKU:
756-3105/040-030
MPN:
756-3105/040-030
Condition:
New
bending cycles:
4 Mio.
bending radius:
10 x cable diameter (min.) for flexible application
cable connection direction to mating direction:
0
cable connection direction to mating direction 2:
0
cable length:
3 m
conductor design:
Bare copper wire (40 x 0.15 mm)
conductor insulation:
PP9Y (halogen-free)
conductor resistance:
26 /km
connection type:
M12 socket - M12 plug
connector interface coding cable adapter 1 1:
A-coded
connector interface coding cable adapter 2 1:
A-coded
contact resistance:
10 m
country of origin sales organisation germany:
DE
drag chain suitability:
Yes
fire load:
0.000 MJ
housing material:
TPU/TPU, black (~ RAL 9005)
insulation resistance:
1000 M
operating current:
0.166666666666667
operating voltage:
250 VAC/DC
packaging type:
Box
plc manufacturer:
WAGO
pole no:
4
pollution degree 5:
3/2 per IEC 60664-1
protection type:
IP67
rated surge voltage:
2.5 kV
sheathed cable diameter:
6 6.4 mm
surrounding air operating temperature dynamic:
-30 +80 C
surrounding air operating temperature static:
-30 +80 C
tightening torque:
1 Nm
type code:
Lif9YH-11YH 4x0.75 mm2
weight:
186.000 g
$38.18

Description

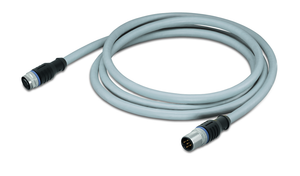

Power supply cable, straight3 m long fitted on both ends.

The WAGO component equivalent to 7563105040030 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is designed to meet certain technical specifications and standards, ensuring compatibility and functionality within its intended system. It serves as a crucial element in the assembly or operation of larger systems, providing necessary features or capabilities that align with the requirements of the application it is used in.
