WAGO 756-3106/040-070
Wago

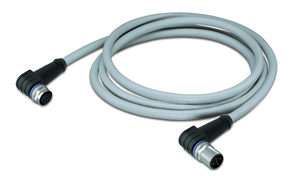

Power cable; M12A socket; angled; M12A plug; angled; 4-pole; Length: 7 m.
The WAGO component equivalent to 7563106040070 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a system. It is essential for users to reference this part number when seeking replacements or integrating the component into their projects to maintain system integrity and performance.
- bending cycles:
- 4 Mio.
- bending radius:
- 10 x cable diameter (min.) for flexible application
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 7 m
- conductor design:
- Bare copper wire (40 x 0.15 mm)
- conductor insulation:
- PP9Y (halogen-free)
- conductor resistance:
- 26 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- A-coded
- connector interface coding cable adapter 2 1:
- A-coded
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 1000 M
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 4
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 2.5 kV
- sheathed cable diameter:
- 6 6.4 mm
- surrounding air operating temperature dynamic:
- -30 +80 C
- surrounding air operating temperature static:
- -30 +80 C
- tightening torque:
- 1 Nm
- type code:
- Lif9YH-11YH 4x0.75 mm2
- weight:
- 385.000 g
