WAGO 756-3106/040-100
Wago

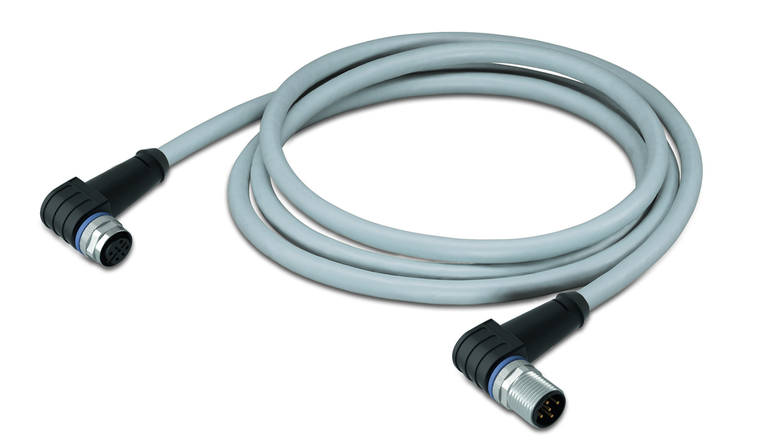

Power supply cable, angled; 10 m; fitted on both ends; A-coded; M12 socket, angled; M12 plug, angled.
The WAGO component equivalent to 7563106040100 is a specific part or model within WAGO's product range, likely used in electrical or automation systems. This component is designed to meet particular specifications and standards, ensuring compatibility and performance in various applications. It is essential for users to verify the exact requirements and compatibility of this component with their systems to ensure optimal functionality and integration.
- bending cycles:
- 4 Mio.
- bending radius:
- 10 x cable diameter (min.) for flexible application
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 10 m
- conductor design:
- Bare copper wire (40 x 0.15 mm)
- conductor insulation:
- PP9Y (halogen-free)
- conductor resistance:
- 26 /km
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- A-coded
- connector interface coding cable adapter 2 1:
- A-coded
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 1000 M
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 4
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 2.5 kV
- sheathed cable diameter:
- 6 6.4 mm
- surrounding air operating temperature dynamic:
- -30 +80 C
- surrounding air operating temperature static:
- -30 +80 C
- tightening torque:
- 1 Nm
- type code:
- Lif9YH-11YH 4x0.75 mm2
- weight:
- 577.000 g
