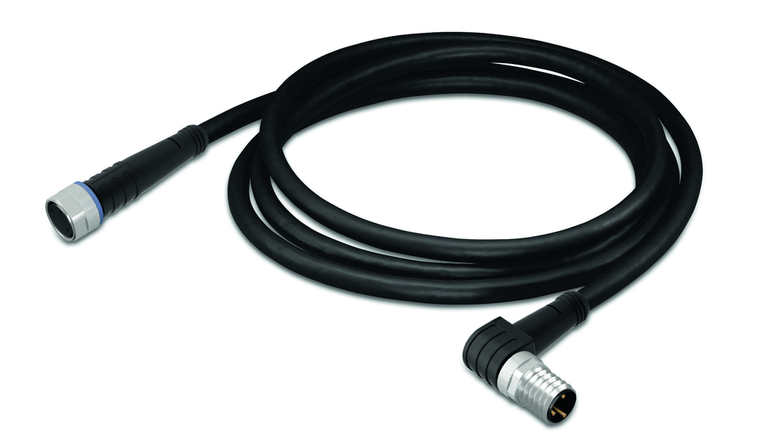

WAGO 756-5202/030-010 sensor/actuator cable, 3-pole M8 socket to M8 plug, 1-meter length
Wago
$26.05
Sensor/actuator cable; fitted on both ends; 3-pole; M8 socket, straight; M8 plug, angled; 1 m.
The WAGO component equivalent to 7565202030010 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration within electrical systems. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 90
- cable length:
- 1 m
- connection type:
- M8 socket - M8 Plug
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 60 VAC/VDC
- packaging type:
- Box
- pole no:
- 3
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 Nm
- weight:
- 42.500 g
