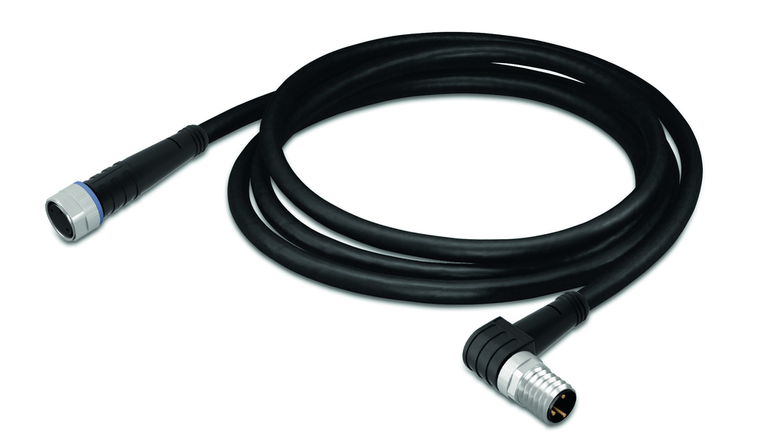

WAGO 756-5202/030-020 sensor/actuator cable, 2m, M8 axial socket to M8 angled plug, 3-pole, PUR sheath
Wago
$28.09
Sensor/Actuator cable; M8 socket; straight; M8 plug; angled; 3-pole; Length: 2 m.
The WAGO component equivalent to 7565202030020 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 90
- cable length:
- 2 m
- connection type:
- M8 socket - M8 Plug
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 1.498 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 3
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 Nm
- weight:
- 58.000 g
