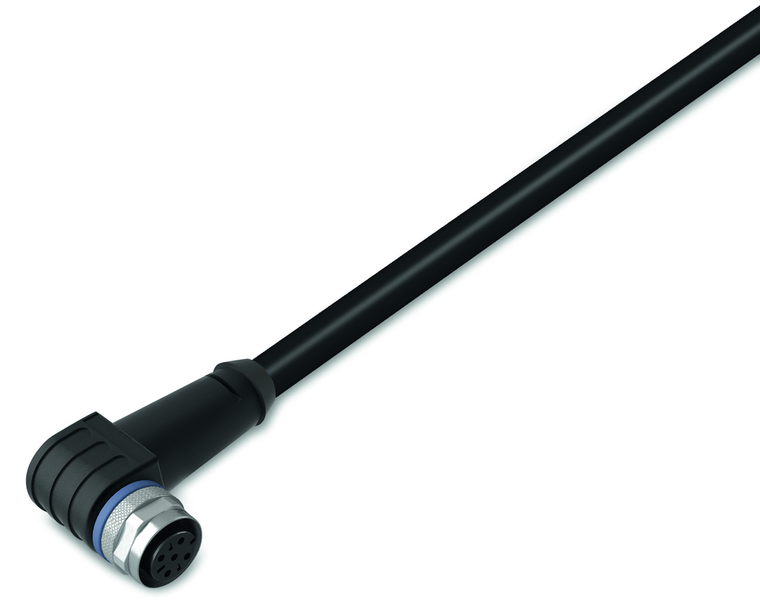

Sensor/actuator cable; fitted on one end (with free end); 5-pole; M12 socket, angled; one free cable end; 5 m.
The WAGO component equivalent to 7565302060015 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity and control within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, ensuring seamless integration and optimal performance in complex automation setups.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable length:
- 1.5 m
- connection point shielded:
- Yes
- connection type:
- M12 socket - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 5
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.3 6.7 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 114.700 g
