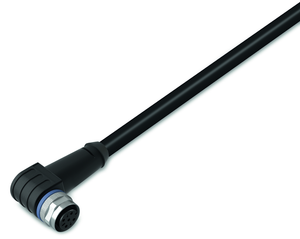

WAGO 756-5302/060-050 sensor/actuator cable, 5-pin M12A female, angled, 5m
Wago
$60.98
Sensor/Actuator cable; M12A socket; angled; 5-pole; Length: 5 m.
The WAGO component equivalent to 7565302060050 is a specific part or module used in various industrial and automation applications. This component is likely designed to meet certain technical specifications and standards, ensuring compatibility and performance within WAGO's product range. It may be used for tasks such as signal processing, data communication, or control system integration, providing reliable and efficient operation in complex systems.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable length:
- 5 m
- connection point shielded:
- Yes
- connection type:
- M12 socket - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 5
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.3 6.7 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 320.000 g
