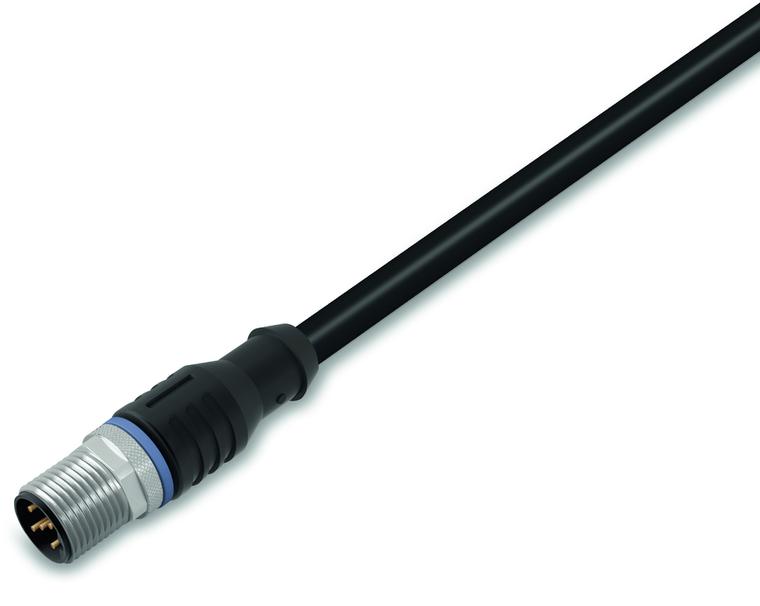

WAGO 756-5311/090-050 sensor/actuator cable, 5m, M12A, 8-pin, axial, PUR, halogen-free
Wago
$87.38
Sensor/actuator cablefitted on one end 8-pole.
The WAGO component equivalent to 7565311090050 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within various systems.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable length:
- 5 m
- connection point shielded:
- Yes
- connection type:
- M12 plug - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 8
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.1 6.5 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 999.000 g
