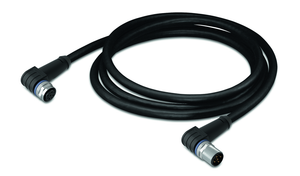

WAGO 756-5403/040-010 4-Pole M12A Female to M12A Male Sensor/Actuator Cable, 1m
Wago
$29.29
Sensor/Actuator cable; M12A socket; angled; M12A plug; straight; 4-pole; Length: 1 m.
The WAGO component equivalent to 7565403040010 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable performance and compatibility with existing systems, ensuring seamless integration and functionality. This component is likely part of WAGO's extensive range of products known for their quality and efficiency in electrical interconnection, automation, and interface electronics.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 0
- cable length:
- 1 m
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- A-coded
- connector interface coding cable adapter 2 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 4
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 2.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 4.5 4.9 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 49.500 g
