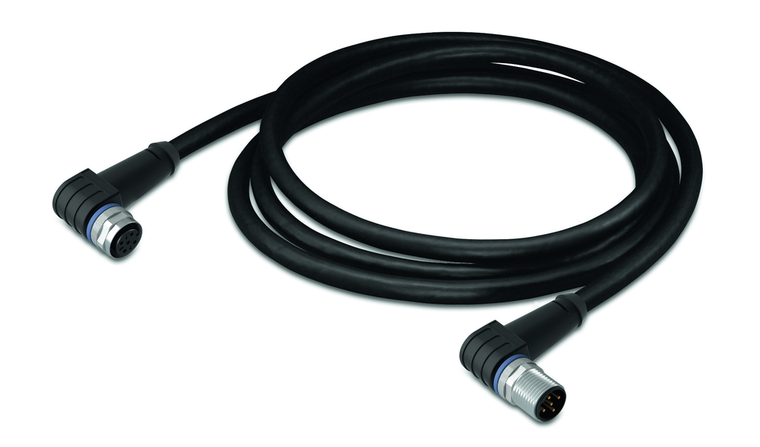

WAGO 756-5404/060-020 2m M12A Sensor/Actuator Cable
Wago
$62.78
Sensor/actuator cable; fitted on both ends; 5-pole; M12 socket, angled; M12 plug, angled; 2 m.
The WAGO component equivalent to 7565404060020 is a specific part or module used in various industrial and automation applications. This component is likely part of WAGO's extensive range of electrical interconnect and automation products, which are known for their reliability and efficiency in connecting, controlling, and automating processes. The exact specifications and applications of this component would depend on its role within the system, but it generally aligns with WAGO's reputation for high-quality and innovative solutions in the field of electrical engineering and automation technology.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 2 m
- connection point shielded:
- Yes
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- A-coded
- connector interface coding cable adapter 2 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 5
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.3 6.7 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 160.000 g
