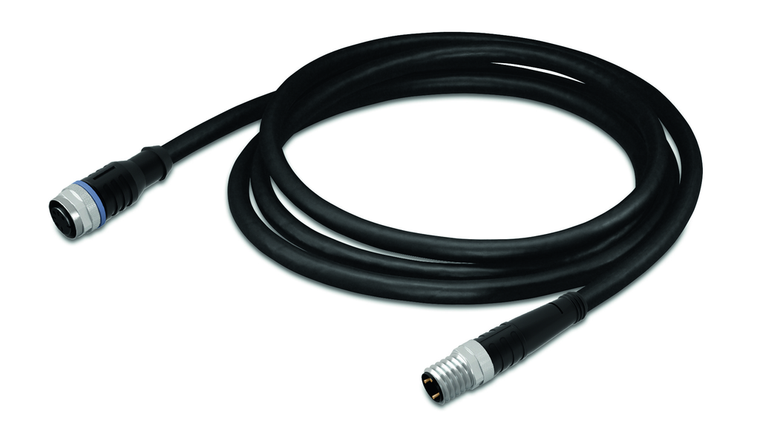

WAGO 756-5501/030-010 sensor/actuator cable, 3-pole, M12 socket to M8 plug, 1 m
Wago
$26.17
Sensor/actuator cable; fitted on both ends; 3-pole; M12 socket, straight; M8 plug, straight; 1 m.
The WAGO component equivalent to 7565501030010 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a system. The exact specifications and use cases would depend on the detailed technical documentation provided by WAGO, but it generally serves a critical role in the assembly or operation of electrical or automated systems.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 0
- cable length:
- 1 m
- connection type:
- M12 socket - M8 Plug
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 3
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 1 Nm
- weight:
- 38.500 g
