Wago

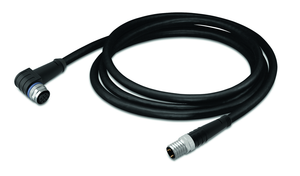

WAGO 756-5502/030-020

SKU:

756-5502/030-020

UPC:

MPN:

756-5502/030-020

Condition:

New

bending cycles:

2 Mio.

cable connection direction to mating direction:

0

cable connection direction to mating direction 2:

90

cable length:

2 m

connection type:

M12 socket - M8 Plug

connector interface coding cable adapter 1 1:

A-coded

contact material:

CuSn

contact plating:

CuNi/Au

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

halogen free:

Yes

housing material:

Polyurethane (PUR)

operating current:

0.166666666666667

operating voltage:

AC/DC 60 V

packaging type:

Box

pole no:

3

pollution degree 5:

3 per VDE 0110

protection type:

IP67

rated surge voltage:

1.5 kV

sheath material:

Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing

sheathed cable color:

Black

sheathed cable diameter:

3.9 4.3 mm

surrounding air operating temperature dynamic:

-25 +90 C

surrounding air operating temperature static:

-50 +90 C

tightening torque:

0.6 1 Nm

weight:

68.000 g
