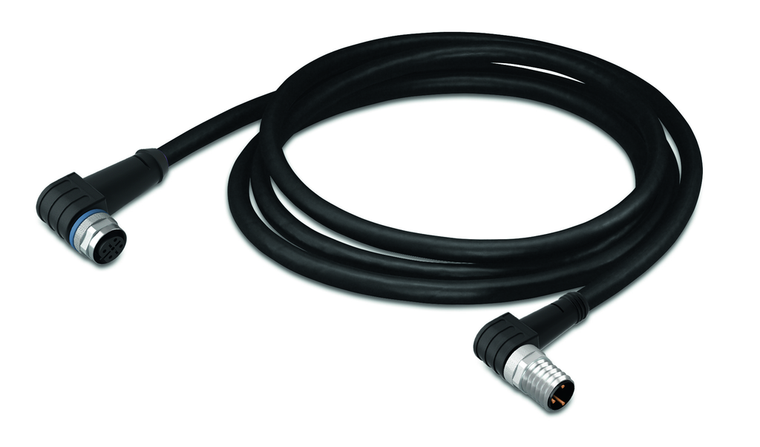

WAGO 756-5504/030-020 2m Sensor-Actuator Cable, M12 Female to M8 Male
Wago
$29.65
Sensor/Actuator cable; M12A socket; angled; M8 plug; angled; 3-pole; Length: 2 m.
The WAGO component equivalent to 7565504030020 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with existing systems. This component is known for its durability, precision, and compatibility with a wide range of devices, making it a preferred choice for professionals in the field. Its technical specifications and features align with industry standards, offering a dependable solution for complex automation tasks.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 2 m
- connection type:
- M12 socket - M8 Plug
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 3
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 1 Nm
- weight:
- 69.000 g
