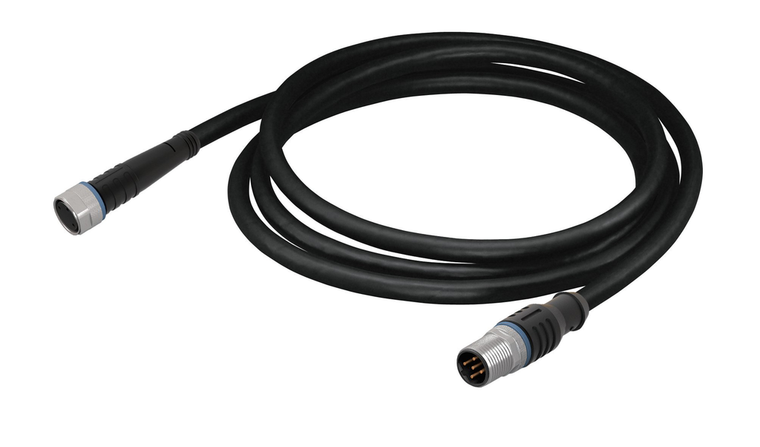

WAGO 756-5507/040-010 sensor/actuator cable, 4-pin M8 socket to M12 plug, 1m length
Wago
$29.89
Sensor/actuator cable; fitted on both ends; 4-pole; M8 socket, straight; M12 plug, straight; 1 m.
The WAGO component equivalent to 7565507040010 is a specific part used in electrical and automation systems. It is designed to provide reliable connectivity and functionality within these systems, ensuring efficient performance and integration. This component is part of WAGO's extensive range of products known for their quality and durability, catering to various industrial applications.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 0
- cable length:
- 1 m
- connection type:
- M8 socket - M12 plug
- connector interface coding cable adapter 2 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 4
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 1 Nm
- weight:
- 44.000 g
