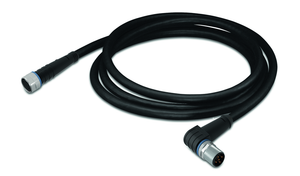

Sensor/actuator cable; fitted on both ends; 4-pole; M8 socket, straight; M12 plug, angled; 2 m.
The WAGO component equivalent to 7565508040020 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with existing systems. This component is known for its durability, ease of installation, and compatibility with a wide range of devices, making it a popular choice among professionals in the field.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 90
- cable length:
- 2 m
- connection type:
- M8 socket - M12 plug
- connector interface coding cable adapter 2 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 4
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 1 Nm
- weight:
- 74.500 g
