WAGO 756-5509/030-020
Wago
$29.05

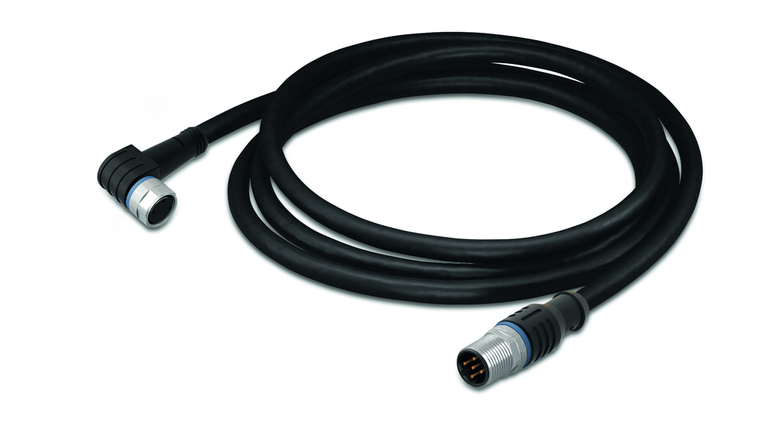

Sensor/actuator cable; fitted on both ends; 3-pole; M8 socket, angled; M12 plug, straight; 2 m.
The WAGO component equivalent to 7565509030020 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration within systems that require precise control and connectivity. This component is known for its durability, ease of installation, and compatibility with other WAGO products, making it a preferred choice for engineers and technicians in the field.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 0
- cable length:
- 2 m
- connection type:
- M8 socket - M12 plug
- connector interface coding cable adapter 2 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- AC/DC 60 V
- packaging type:
- Box
- pole no:
- 3
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 3.9 4.3 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 0.6 1 Nm
- weight:
- 63.500 g
