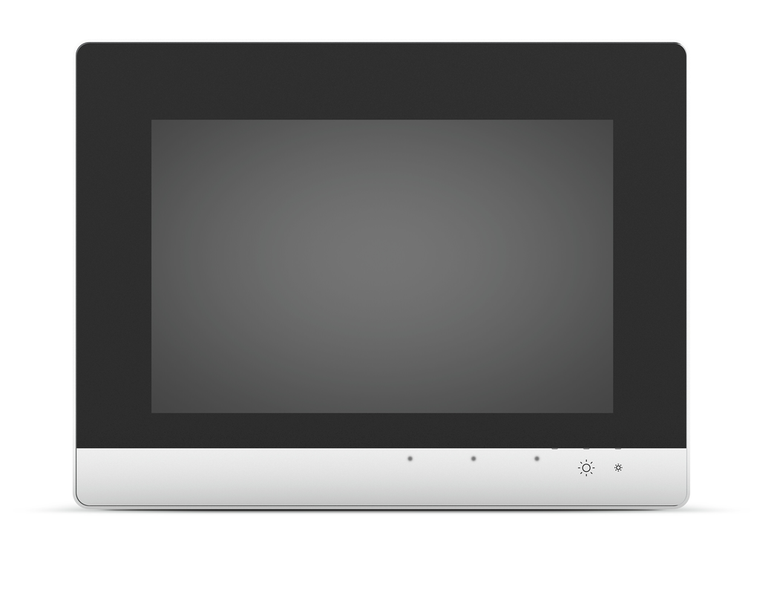

Wago 762-3003 Web Panel; 25.7 cm (10.1"); 1280 x 800 pixels; 2 x USB, 2 x ETHERNET
Wago
Web Panel; 10.1" (25.7 cm); 1280 x 800 pixels; 2 x USB, 2 x ETHERNET
- baud rate:
- ETHERNET: 10/100 Mbit/s
- brightness:
- 800 cd/m2
- communication:
- Web browser (CODESYS2)
- conformity marking:
- CE
- connection technology communication fieldbus:
- Modbus TCP: 2 x RJ-45: USB: 2 x USB 2.0 host (type A)
- contrast ratio:
- 33.3340277777778
- controls:
- Resistive touch panel: 2 capacitive keys: proximity sensor
- country of origin sales organisation germany:
- DE
- depth:
- 58 mm / 2.283 inch
- display:
- Resistive touchscreen
- display colors:
- 16 million colors
- display diagonal:
- 25.7 cm (10.1 Inches)
- ethernet protocols:
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- fire load:
- 0.003 MJ
- front panel:
- Anodized aluminum, polyester film
- graphics resolution:
- (1280 x 800) px
- hbt half brightness time:
- 70000 h
- height:
- 223 mm / 8.78 inch
- housing material:
- Anodized aluminum
- indicators:
- Three-color LED (red, green, blue)
- internal memory flash:
- 1024 MB
- main memory ram:
- 512 MB
- max input current 24 v:
- 390 mA
- memory card type:
- MicroSD (max. 2 GB): microSDHC (max. 32 GB)
- mounting type:
- Clamping elements (included) or VESA mount (4 x M4x8)
- note on protection type:
- IP65 (front side): IP20 (rear side), per EN 60529
- operating power:
- 9.9 W (max.)
- operating system:
- Linux
- packaging type:
- Box
- panel cutout w x h:
- (278 x 208) mm
- processor:
- ARM Cortex A8 600 MHz
- protection type:
- IP65
- relative humidity without condensation:
- 0.9
- supply voltage:
- 24 VDC, SELV (18 31.2 V): with reverse voltage protection
- surrounding air temperature operation:
- 0 50 C
- surrounding air temperature storage:
- -20 80 C
- viewing angle horizontal vertical:
- 85 / 85
- visualization:
- Web Visu
- weight:
- 2138.000 g
- width:
- 293 mm / 11.535 inch
