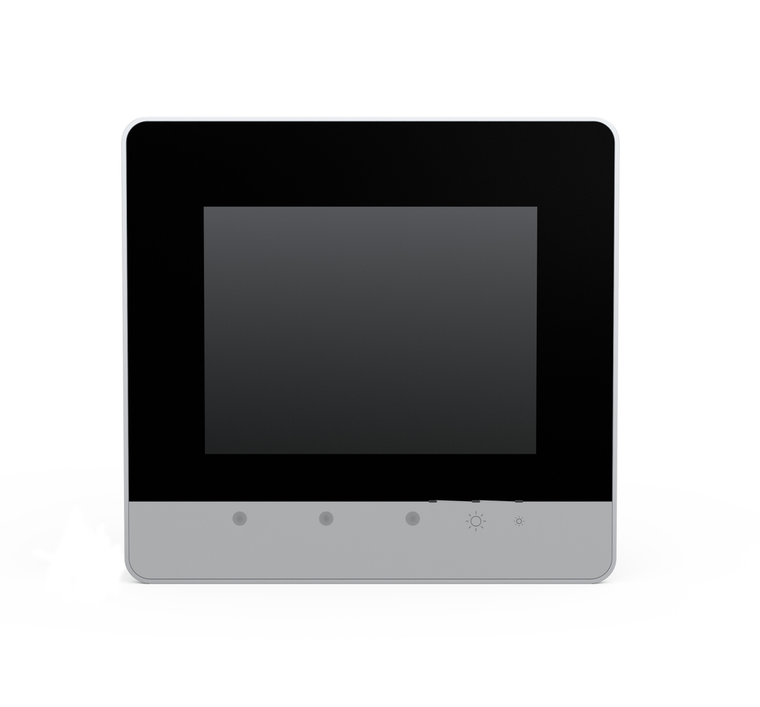

WAGO 762-4302/8000-002 Touch Panel 600, 5.7" Resistive Touchscreen, 640 x 480 Resolution, Dual Ethernet & USB Ports, CAN, RS-232/485, Digital I/O, Audio Interface, IP65
Wago
$1,931.00
Touch Panel 600; 14.5 cm (5.7"); 640 x 480 pixels; 2 x ETHERNET, 2 x USB, CAN, DI/DO, RS-232/485, Audio; Control Panel
- Two ETHERNET ports for connecting to field devices and the engineering tool
- Two USB ports for optional connection of a USB stick, mouse or keyboard
- Audio interface for connecting headphones or a loudspeaker
- CAN for controlling field devices
- RS-232/-485 interface for controlling field devices with a serial interface
- Four digital inputs/outputs for reading/triggering digital signals
- Power-failure-proof storage component
The HMI touchscreen panel from WAGO's 762 600 Standard line series, model TP600, features a 5.7-inch 640x480 VGA display with analog resistive sensing and is powered by an ARM Cortex-A9 Quad-Core 1GHz processor. It includes 2GB RAM and 4GB internal flash memory, supporting various communication protocols such as Modbus RTU, Modbus TCP, Ethernet/IP, EtherCAT, CANopen, RS-232, and RS-485. The panel operates on a supply voltage of 18-30Vdc (24Vdc nominal) and offers connectivity through 2 RJ45 connectors, a 9-pin female D-Sub connector for RS-232/485, a 9-pin male D-Sub connector for CAN, and 2 USB type-A host ports. It supports flush or VESA mounting, includes a microSD and SDHC card slot (up to 32GB), and is IP65 rated for ambient temperatures ranging from -20°C to +50°C. This model replaces the obsolete 762-3057/000-001 component and is equivalent to 76243028000002.
- brightness:
- 630 cd/m2
- communication:
- EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus TCP Master/Slave || CANopen || Modbus (UDP) || RS-232 serial interface || RS-485 serial interface || MQTT || EtherCAT Master, requires an additional license || BACnet/IP, requires an addi
- connection technology communication fieldbus:
- Modbus TCP/UDP: 2 x RJ-45: EtherNet/IPTM: 2 x RJ-45: CANopen: 1 x D-sub 9 plug: Modbus UDP: 2 x RJ-45: RS-232 + RS-485 serial interface: 1 x D-sub 9 socket: USB: 2 x USB 2.0 host (type A)
- connection technology supply:
- 1 x included 734-103 female connector featuring three CAGE CLAMP connections
- contrast ratio:
- 12.5006944444444
- controls:
- Resistive touch panel: 2 capacitive keys: proximity sensor
- country of origin sales organisation germany:
- DE
- data memory:
- 128 MB
- depth:
- 78 mm / 3.070 inch
- display:
- Resistive touchscreen
- display colors:
- 262,000 colors
- display diagonal:
- 14.5 cm (5.7 Inches)
- ethernet protocols:
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- fire load:
- 0.000 MJ
- graphics resolution:
- (640 x 480) px
- height:
- 163 mm / 6.417 inch
- indicators:
- Three-color LED (red, green, blue)
- internal memory flash:
- 4096 MB
- main memory ram:
- 2048 MB
- memory card type:
- MicroSD (max. 2 GB): microSDHC (max. 32 GB)
- mounting type:
- Clamping elements (included) or VESA mount (4 x M4x8)
- non volatile software memory:
- 128 kB
- note on protection type:
- IP65 (front side): IP20 (rear side), per EN 60529
- operating power:
- 7.0 W, without USB load: 12.0 W, with USB load
- operating system:
- Real-time Linux (with RT-Preempt patch)
- packaging type:
- Box
- panel cutout w x h:
- (157 x 148) mm
- processor:
- ARM Cortex A9 Quadcore 1.0 GHz
- program memory:
- 32 MB
- programming environment:
- e!COCKPIT (based on CODESYS V3)
- protection type:
- IP65
- relative humidity without condensation:
- 0.9
- supply voltage:
- 24 VDC, SELV (18 31.2 V): with reverse voltage protection
- surrounding air temperature operation:
- -20 55 C (when mounted vertically: 20 +50 C, other mounting positions)
- surrounding air temperature storage:
- -20 80 C
- viewing angle horizontal vertical:
- 80 / 80
- visualization:
- Webserver || Web Visu || Target Visu
- weight:
- 1221.000 g
- width:
- 172 mm / 6.772 inch
