WAGO 762-4304/8000-002 Touch Panel 600, 10.1" Resistive Touchscreen, 1280 x 800 Resolution, Dual Ethernet, Dual USB, CAN, RS-232/485, Audio, IP65
Wago
$2,897.00
Standard Line; 10.1" (25.7 cm); 1280 x 800 pixels; 2 x ETHERNET, 2 x USB, CAN, DI/DO, RS-232/485, Audio; Control Panel.

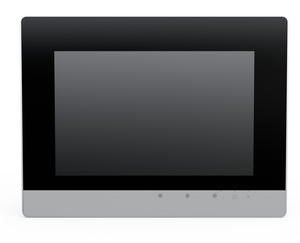

The HMI touchscreen panel from WAGO's 762 600 Standard line series, model TP600, features a 10.1-inch display with a resolution of 1280x800 pixels and analog resistive sensing. It is powered by an ARM Cortex-A9 Quad-Core 1GHz processor, with 2GB RAM and 4GB internal flash memory. The panel supports various communication protocols including Modbus RTU, Modbus TCP, Ethernet/IP, EtherCAT, CANopen, RS-232, and RS-485. It operates on a supply voltage of 18-30Vdc (24Vdc nominal) and includes 2 RJ45 connectors, a 9-pin female D-Sub connector for RS-232/485, a 9-pin male D-Sub connector for CAN, and 2 USB type-A host ports. The device supports flush or VESA mounting, has a microSD and SDHC card slot (up to 32GB), and is rated IP65 for operation in ambient temperatures ranging from -20°C to +50°C.
- brightness:
- 800 cd/m2
- communication:
- EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus TCP Master/Slave || CANopen || Modbus (UDP) || RS-232 serial interface || RS-485 serial interface || MQTT || EtherCAT Master, requires an additional license || BACnet/IP, requires an addi
- connection technology communication fieldbus:
- Modbus TCP/UDP: 2 x RJ-45: EtherNet/IPTM: 2 x RJ-45: CANopen: 1 x D-sub 9 plug: Modbus UDP: 2 x RJ-45: RS-232 + RS-485 serial interface: 1 x D-sub 9 socket: USB: 2 x USB 2.0 host (type A)
- connection technology supply:
- 1 x included 734-103 female connector featuring three CAGE CLAMP connections
- contrast ratio:
- 33.3340277777778
- controls:
- Resistive touch panel: 2 capacitive keys: proximity sensor
- country of origin sales organisation germany:
- DE
- data memory:
- 128 MB
- depth:
- 78 mm / 3.070 inch
- display:
- Resistive touchscreen
- display colors:
- 16 million colors
- display diagonal:
- 25.7 cm (10.1 Inches)
- ethernet protocols:
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- fire load:
- 0.003 MJ
- graphics resolution:
- (1280 x 800) px
- height:
- 223 mm / 8.78 inch
- indicators:
- Three-color LED (red, green, blue)
- internal memory flash:
- 4096 MB
- main memory ram:
- 2048 MB
- memory card type:
- MicroSD (max. 2 GB): microSDHC (max. 32 GB)
- mounting type:
- Clamping elements (included) or VESA mount (4 x M4x8)
- non volatile software memory:
- 128 kB
- note on protection type:
- IP65 (front side): IP20 (rear side), per EN 60529
- operating power:
- 11.8 W, without USB load: 17.0 W, with USB load
- operating system:
- Real-time Linux (with RT-Preempt patch)
- packaging type:
- Box
- panel cutout w x h:
- (278 x 208) mm
- processor:
- ARM Cortex A9 Quadcore 1.0 GHz
- program memory:
- 32 MB
- programming environment:
- e!COCKPIT (based on CODESYS V3)
- protection type:
- IP65
- relative humidity without condensation:
- 0.9
- supply voltage:
- 24 VDC, SELV (18 31.2 V): with reverse voltage protection
- surrounding air temperature operation:
- -20 55 C (when mounted vertically: 20 +50 C, other mounting positions)
- surrounding air temperature storage:
- -20 80 C
- viewing angle horizontal vertical:
- 85 / 85
- visualization:
- Webserver || Web Visu || Target Visu
- weight:
- 1602.000 g
- width:
- 293 mm / 11.535 inch
