Wago

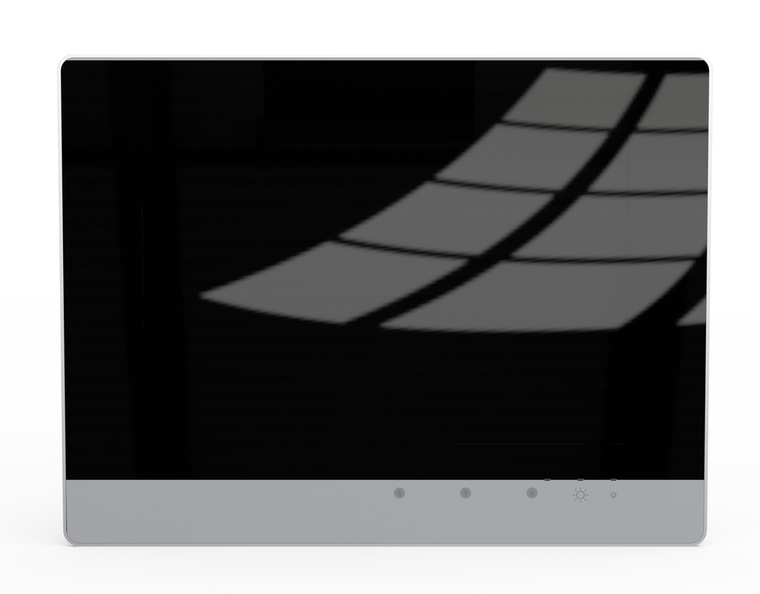

WAGO 762-5204/8000-001

SKU:

60389677

UPC:

MPN:

762-5204/8000-001

Condition:

New

brightness:

800 cd/m2

communication:

EtherNet/IPTM Adapter (slave), library for e!RUNTIME (prerequisite: e!RUNTIME PLC 600 license) || Modbus TCP Master/Slave (prerequisite: e!RUNTIME PLC 600 license) || EtherCAT Master, requires an additional license (prerequisite: e!RUNTIME PLC 600 li

connection technology communication fieldbus:

Modbus TCP: 2 x RJ-45: 2 x USB 2.0 host (type A)

connection technology supply:

1 x included 734-103 female connector featuring three CAGE CLAMP connections

contrast ratio:

33.3340277777778

controls:

Capacitive (glass): 2 capacitive keys: proximity sensor

country of origin sales organisation germany:

DE

data memory:

128 MB

depth:

58 mm / 2.283 inch

display:

Multitouch glass front: Capacitive touchscreen with a glass surface

display colors:

16 million colors

display diagonal:

25.7 cm (10.1 Inches)

ethernet protocols:

DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH

fire load:

0.003 MJ

graphics resolution:

(1280 x 800) px

height:

223 mm / 8.78 inch

indicators:

Three-color LED (red, green, blue)

internal memory flash:

4096 MB

main memory ram:

2048 MB

memory card type:

MicroSD (max. 2 GB): microSDHC (max. 32 GB)

mounting type:

Clamping elements (included) or VESA mount (4 x M4x8)

note on protection type:

IP65 (front side): IP20 (rear side), per EN 60529

operating power:

11.6 W, without USB load: 16.8 W, with USB load

operating system:

Real-time Linux (with RT-Preempt patch)

packaging type:

Box

panel cutout w x h:

(278 x 208) mm

processor:

ARM Cortex A9 Quadcore 1.0 GHz

program memory:

32 MB

programming environment:

e!COCKPIT (based on CODESYS V3)

protection type:

IP65

relative humidity without condensation:

0.9

supply voltage:

24 VDC, SELV (18 31.2 V): with reverse voltage protection

surrounding air temperature operation:

-20 55 C (when mounted vertically: 20 +50 C, other mounting positions)

surrounding air temperature storage:

-20 80 C

viewing angle horizontal vertical:

85 / 85

visualization:

Webserver || Web Visu

weight:

1580.000 g

width:

293 mm / 11.535 inch
