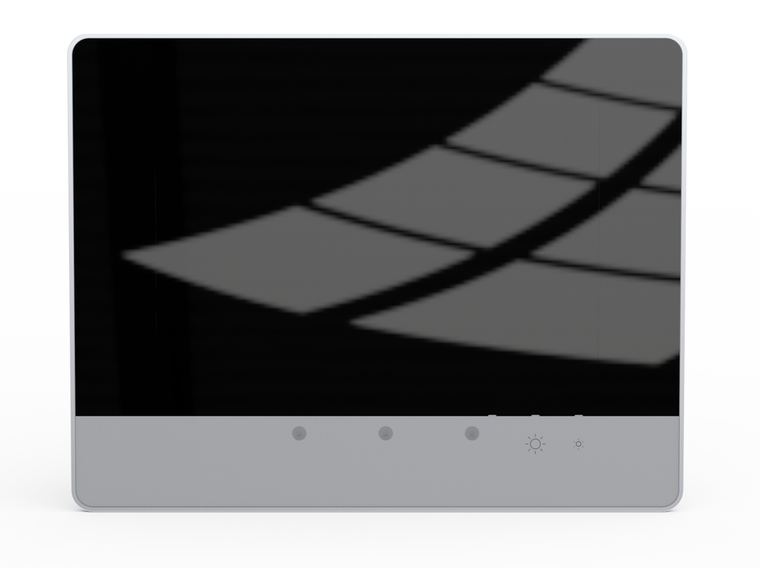

WAGO 762-5303/8000-002

(No reviews yet) Write a Review

Write a Review

WAGO 762-5303/8000-002

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

762-5303/8000-002

UPC:

MPN:

Condition:

New

brightness:

450 cd/m2

communication:

EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus TCP Master/Slave || CANopen || Modbus (UDP) || RS-232 serial interface || RS-485 serial interface || MQTT || EtherCAT Master, requires an additional license || BACnet/IP, requires an addi

connection technology communication fieldbus:

Modbus TCP/UDP: 2 x RJ-45: EtherNet/IPTM: 2 x RJ-45: CANopen: 1 x D-sub 9 plug: Modbus UDP: 2 x RJ-45: RS-232 + RS-485 serial interface: 1 x D-sub 9 socket: USB: 2 x USB 2.0 host (type A)

connection technology supply:

1 x included 734-103 female connector featuring three CAGE CLAMP connections

contrast ratio:

33.3340277777778

controls:

Capacitive (glass): 2 capacitive keys: proximity sensor

country of origin sales organisation germany:

DE

data memory:

128 MB

depth:

78 mm / 3.070 inch

display:

Multitouch glass front: Capacitive touchscreen with a glass surface

display colors:

16 million colors

display diagonal:

17.8 cm (7 Inches)

ethernet protocols:

DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH

fire load:

0.003 MJ

graphics resolution:

(800 x 480) px

height:

167 mm / 6.575 inch

indicators:

Three-color LED (red, green, blue)

internal memory flash:

4096 MB

main memory ram:

2048 MB

memory card type:

MicroSD (max. 2 GB): microSDHC (max. 32 GB)

mounting type:

Clamping elements (included) or VESA mount (4 x M4x8)

non volatile software memory:

128 kB

note on protection type:

IP65 (front side): IP20 (rear side), per EN 60529

operating power:

8.8 W, without USB load: 13.9 W, with USB load

operating system:

Real-time Linux (with RT-Preempt patch)

packaging type:

Box

panel cutout w x h:

(198 x 152) mm

processor:

ARM Cortex A9 Quadcore 1.0 GHz

program memory:

32 MB

programming environment:

e!COCKPIT (based on CODESYS V3)

protection type:

IP65

relative humidity without condensation:

0.9

supply voltage:

24 VDC, SELV (18 31.2 V): with reverse voltage protection

surrounding air temperature operation:

-20 55 C (when mounted vertically: 20 +50 C, other mounting positions)

surrounding air temperature storage:

-20 80 C

viewing angle horizontal vertical:

89 / 89

visualization:

Webserver || Web Visu || Target Visu

weight:

1120.000 g

width:

213 mm / 8.386 inch
