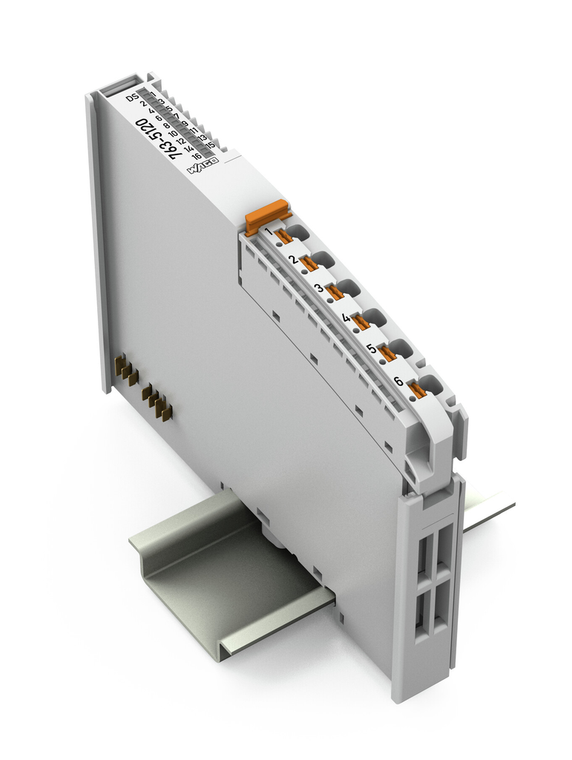

Wago 763-5120
Wago 763-5120
(No reviews yet)
Write a Review
Write a Review
Wago 763-5120
Rating
Required
Select Rating
1 star (worst)
2 stars
3 stars (average)
4 stars
5 stars (best)
Name
Email
Required
Review Subject
Required
Comments
Required
SKU:
763-5120
UPC:
MPN:
763-5120
Condition:
New
conformity marking:
CE
connection technology field supply:
4 x Push-in CAGE CLAMP
connection technology system supply:
2 x Push-in CAGE CLAMP
connection type 1:
System supply
connection type 2:
Field supply
country of origin sales organisation germany:
DE
current carrying capacity power jumper contacts:
0
current carrying capacity power jumper contacts note:
Requires external fusing (12.5 A fast) of the field supply
data width:
1 bit: Bit 0: Power supply status (field)
depth:
75 mm / 2.953 inch
emc emission of interference:
Per EN 61000-6-3, -4
emc immunity to interference:
Per EN 61000-6-1, -2
fine stranded conductor:
0.25 2.5 mm / 22 14 AWG
fire load:
0.047 MJ
height:
105 mm / 4.134 inch
isolation field system:
Min. 1000 VDC (1 min): per EN/UL 61010-2-201
marking:
Cl I, Div 2, Group A, B, C, D, T4
mounting position:
Horizontal, typical for control cabinets (nominal mounting position): horizontal (floor mounting position): standing (vertical at bottom)
mounting type:
DIN-35 rail
note conductor cross section:
Insulated ferrule: 1.5 mm (max.)
operating altitude:
Without temperature derating: 0 2000 m: with temperature derating: 2000 3000 m (0.5 K/100 m)
pollution degree 5:
2
power consumption field supply module with no external load:
3 mA
power consumption system supply power supply at max local bus supply:
900 mA
power loss pl:
1.5 W
power supply efficiency typ at nominal load 24 v:
0.95
protection type:
IP20
solid conductor:
0.25 2.5 mm / 22 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC, SELV (-25 +30 %): UF
supply voltage system:
24 VDC, SELV (-25 +30 %): US
surrounding air temperature operation:
-25 60 C (Horizontal, typical control cabinet installation: 25 +50 C, other mounting positions)
surrounding air temperature storage:
-40 85 C
temperature range of connecting cable per ul 61010 2 201 min:
85 C
temperature range of the connecting cable according to en 61010 2 201:
(Tsurrounding air + 25 K)
total current for system supply local bus max:
3900 mA
weight:
68.000 g
width:
12 mm / 0.472 inch
MSRP:
Now:
$159.65
Was:
— You save
Current Stock:
Quantity:
Decrease Quantity of Wago 763-5120
Increase Quantity of Wago 763-5120
Add to Cart later
Description
Description
System Power Supply; 24 VDC
View All
Close
Related Products
Related Products
Related Products

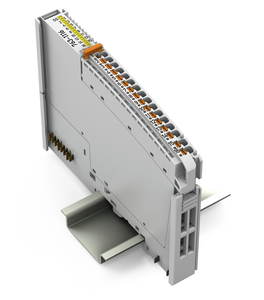

Wago 763-1516
