16-channel digital input; Profinet; 24 VDC; 8xM12 connection; WideLine.

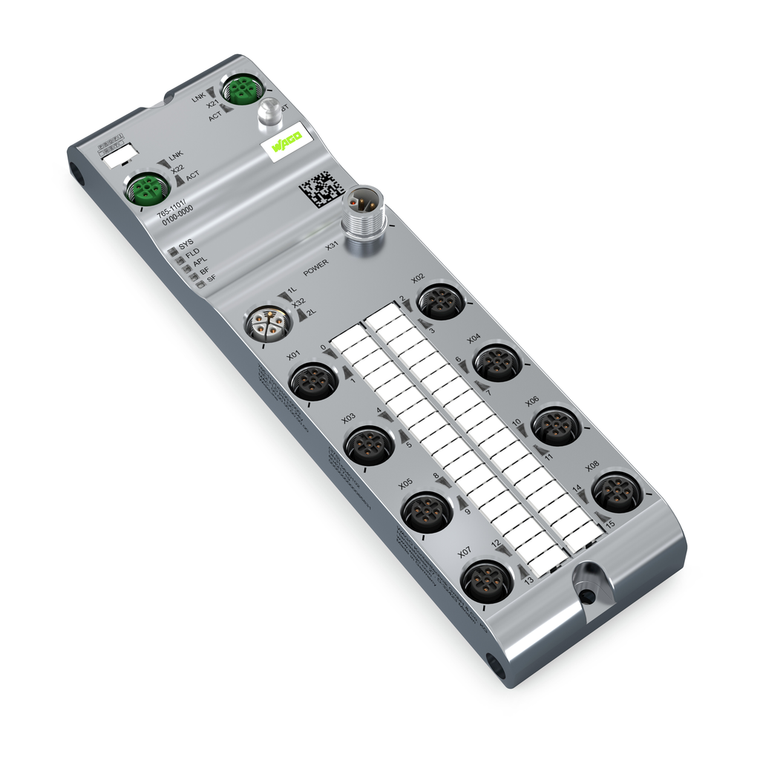

The WAGO 765 series Fieldbus module (remote I/O controller unit) features 16 digital inputs (24Vdc transistor, type-3 high-side switching, 0.2-20ms filter) and supports PROFINET IO communication. It operates on a supply voltage range of 18-31.2Vdc (24Vdc nominal) and includes 2 x 4-pin D-coded M12 connectors for fieldbus and 8 x 5-pin A-coded M12 connectors for I/O ports. The unit is designed for 2-hole screw mounting, has an IP67 rating, and is suitable for ambient temperatures ranging from -25°C to +70°C. It is equivalent to model number 7651101100000.
- autonegotiation autocrossover:
- Yes
- communication:
- PROFINET || PROFINET IO Device: 2-port switch, LLDP, MRP, SNMP
- conformity marking:
- CE
- connection technology communication fieldbus:
- 2 x D-coded M12: 4-pole
- connection technology inputs outputs:
- 8 x A-coded M12: 5-pole
- connection technology supply:
- 2 x L-coded M12: 5-pole
- country of origin sales organisation germany:
- DE
- depth:
- 210 mm / 8.268 inch
- device functions:
- Bluetooth || OPC UA Server
- diagnostics:
- Undervoltage: overcurrent: overload: overtemperature
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- height:
- 30 mm / 1.181 inch
- input characteristic:
- High-side switching || Type 3, per IEC 61131-2
- input filter:
- 0.2 20 ms
- interface standard:
- 10BASE-T/100BASE-TX: potential-free
- number of digital inputs:
- 16
- operating altitude:
- 0 2000 m
- overvoltage category:
- II (EN 60664-1)
- packaging type:
- Box
- parameters:
- Input filter || Temperature
- pollution degree 5:
- 3 per EN 60664-1
- power consumption max:
- 16000 mA
- power consumption note:
- Per supply line: overload- and short-circuit-protected
- profinet io properties:
- PROFINET IO device: 2-port switch, LLDP, MRP, SNMP
- protection class:
- III per EN 61140, IEC 61140, VDE 0140-1
- protection type:
- IP67
- relative humidity without condensation:
- 0.95
- reverse voltage protection:
- Yes
- sensor current per channel max:
- 0.0833333333333333
- shock resistance:
- Short-term: 50g/11 ms/half-sine per IEC 60068-2-27: Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
- supply voltage:
- 24 VDC (18 31.2 V): 1L/2L
- surrounding air temperature operation:
- -25 70 C
- surrounding air temperature storage:
- -40 80 C
- vibration resistance:
- 5g per IEC 60068-2-6
- visualization:
- Android/iOS app || Webserver
- voltage signal type:
- 24 VDC
- weight:
- 610.000 g
- width:
- 60 mm / 2.362 inch
