Wago

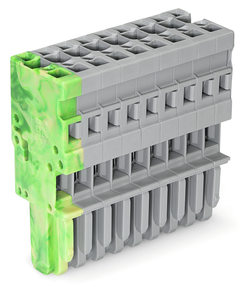

WAGO 769-109/000-036

SKU:

769-109/000-036

UPC:

MPN:

769-109/000-036

Condition:

New

actuation type:

Operating tool

color:

Gray, green-yellow

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

18.3 mm / 0.72 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.470 MJ

flammability class per ul94:

V0

height:

45.2 mm / 1.78 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

module width:

5 mm / 0.197 inch

nominal cross section:

4 mm

nominal voltage iii 3:

500 V

packaging type:

Box

pole no:

9

rated current:

32 A

rated surge voltage iii 3:

6 kV

ratings per:

IEC/EN 61984

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

29.165 g

width:

45 mm / 1.772 inch

wiring direction:

Front-entry wiring
