Wago

WAGO 769-112/022-000

(No reviews yet) Write a Review
SKU:
769-112/022-000
MPN:
769-112/022-000
Condition:
New
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
DE
depth:
26.5 mm / 1.043 inch
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.527 MJ
flammability class per ul94:
V0
height:
37.1 mm / 1.461 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
module width:
5 mm / 0.197 inch
nominal cross section:
4 mm
nominal voltage iii 3:
500 V
packaging type:
Box
pole no:
12
rated current:
32 A
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 61984
safety information 1:
According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
29.700 g
width:
60 mm / 2.362 inch
wiring direction:
Front-entry wiring
$19.72

Description

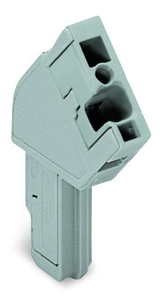

1-conductor female plug; angled; 4 mm®; 12-pole.

The WAGO 769 X-COM series angled 1-conductor female plug features a 5mm pin spacing and 12 poles, with a nominal cross-section of 4mm². It supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and is rated for a current of 32A. The plug is gray in color, utilizes CAGE CLAMP spring connections, and is designed for plug-in mounting with a width of 60mm. It is equivalent to the model number 769112022000.
