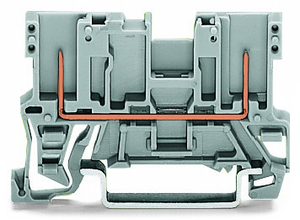

WAGO 769-156 2-Pin Carrier Terminal Block for DIN-Rail 35 x 15 and 35 x 7.5, Gray
Wago
$2.03
2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm; CAGE CLAMPp>
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
- Depth: 52.5 mm / 2.067 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.099 MJ
- Weight: 4.470 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918391672
- Customs Tariff No.: 85369010000
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, single-deck component with a center marking slot, designed for one feed-through pole and two wires using plug-in pin connections. It supports a rated current of 32A and is mounted on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 5 mm. This terminal block is equivalent to model 769156.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.099 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- weight:
- 4.470 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
