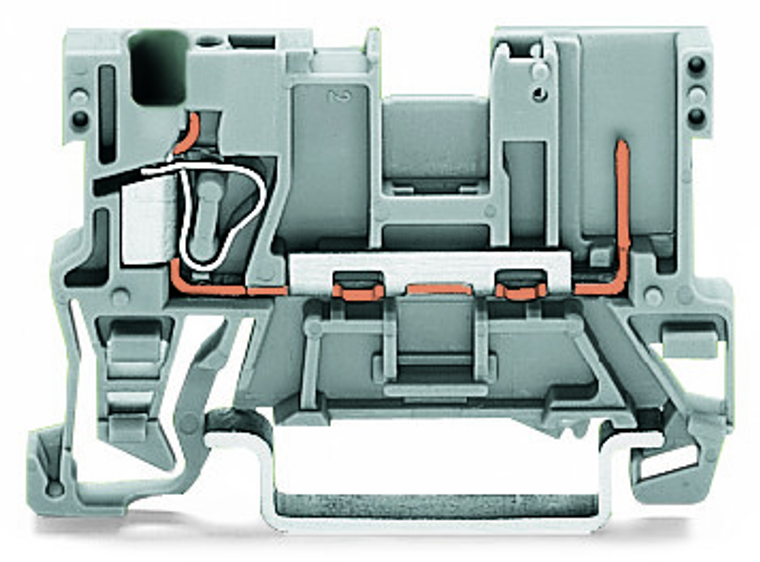

WAGO 769-176

(No reviews yet) Write a Review

Write a Review

WAGO 769-176

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

769-176

UPC:

MPN:

769-176

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

28.5 mm / 1.122 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.101 MJ

flammability class per ul94:

V0

height:

52.5 mm / 2.067 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal cross section:

4 mm

nominal voltage iii 3:

500 V

number of connection points:

1

number of connection points 2:

1

packaging type:

Box

rated current:

32 A

rated surge voltage iii 3:

6 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

5.270 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
