Wago 769-184/769-314

WAGO 769-184/769-314

Wago
SKU:
769-184/769-314
Availability:
Contact us to confirm availability and lead times.
$15.40
Condition:
New
Current Stock:
Description

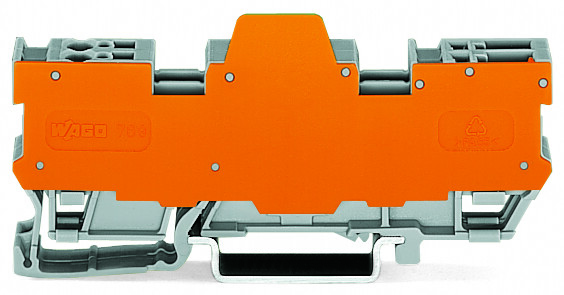

1-conductor/1-pin terminal block for pluggable modules; with 2 jumper positions; with orange separator plate; 21.1 mm wide; 8-pole

Electrical Data
  • Rated voltage (III / 3): 400 V
  • Rated impulse voltage (III / 3): 6 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
  • Connection technology: CAGE CLAMP<sup></sup>
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross section: 4 mm
  • Solid conductor: 0.08 4 mm / 28 12 AWG
  • Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
  • Strip length: 8 9 mm / 0.31 0.35 inch
  • No. of poles: 8
  • Total number of connection points: 4
  • Total number of potentials: 8
  • Number of levels: 1
  • Type of wiring: Front-entry wiring
Geometrical Data
  • Width: 21.1 mm / 0.831 inch
  • Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
  • Depth: 87.5 mm / 3.445 inch
Mechanical Data
  • Design: horizontal
  • Type of mounting: DIN-35 rail
  • Marking level: Center marking
Material Data
  • Color: gray
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.740 MJ
  • Weight: 35.458 g
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4044918934886
  • Customs Tariff No.: 85369010000
.

The WAGO 769 X-COM series feed-through terminal block is a gray, 1-deck unit featuring pluggable disconnects, two jumper positions, and a built-in orange separator. It accommodates 8 feed-through poles, supporting 16 wires (8 clamps and 8 plug-in pins) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. Rated for a current of 16A, it utilizes CAGE CLAMP spring connections and plug-in pin connections, and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 21.1mm.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28.5 mm / 1.122 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.740 MJ
flammability class per ul94:
V0
height:
87.5 mm / 3.445 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
mounting type:
DIN-35 rail
nominal cross section:
4 mm
nominal voltage iii 3:
400 V
number of connection points:
4
number of connection points 2:
4
packaging type:
Box
pole no:
8
rated current:
16 A
rated surge voltage iii 3:
6 kV
safety information 1:
2-conductor female plugs cannot be used.
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
35.458 g
width:
21.1 mm / 0.831 inch
wiring direction:
Front-entry wiring
