1-conductor/1-conductor terminal block for pluggable modules; 10-pole; with 2-conductor terminal blocks; with 2 jumper positions; with orange separator plate; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm
Electrical Data
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 16 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm
- Solid conductor: 0.08 4 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- No. of poles: 10
- Total number of connection points: 10
- Total number of potentials: 10
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 26.1 mm / 1.028 inch
- Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
- Depth: 87.5 mm / 3.445 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.903 MJ
- Weight: 44.300 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332096195
- Customs Tariff No.: 85369010000

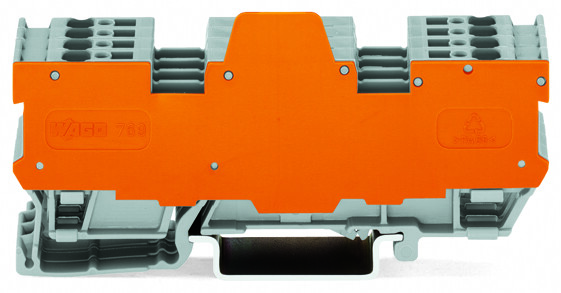

The WAGO 769 X-COM series feed-through terminal block is a gray, 1-deck unit with pluggable disconnect, two jumper positions, and a built-in orange separator. It features 10 feed-through poles for 10 wires (5 clamps on each side) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 16A and uses CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 26.1mm.
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.903 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pole no:
- 10
- rated current:
- 16 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 44.300 g
- width:
- 26.1 mm / 1.028 inch
- wiring direction:
- Front-entry wiring
