Wago

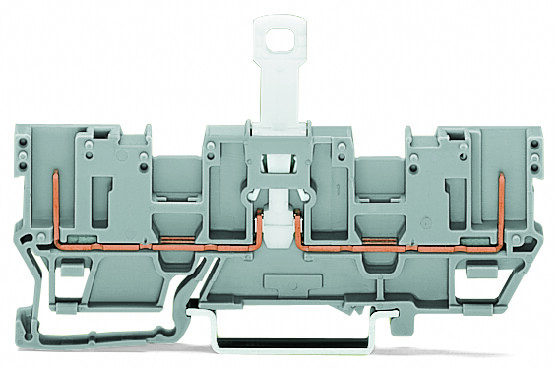

WAGO 769-202 2-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; gray

(No reviews yet) Write a Review
SKU:
769-202
MPN:
51139017
Condition:
New
color:
Gray
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28.5 mm / 1.122 inch
design:
Horizontal type
fire load:
0.179 MJ
flammability class per ul94:
V0
height:
87.5 mm / 3.445 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
400 V
packaging type:
Box
rated current:
16 A
rated surge voltage iii 3:
6 kV
weight:
8.170 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
  • Wago 769-202
  • Wago 769-202
$4.32

Description

2-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; gray.

The WAGO 769 X-COM series carrier feed-through terminal block is a gray, single-deck unit with a tab disconnect, two jumper positions, and a center marking slot. It features one feed-through pole for two wires, each with a plug-in pin connection, and is rated for a current of 16A. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769202.
